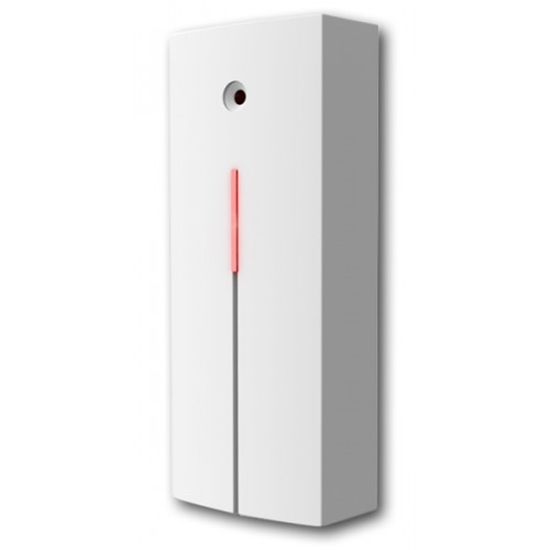

VIVO glass break detector

Be the first to review this product

€23.74 incl tax

The GBS-210 glass break detector detects the breaking of glass windows.

SKU: GBS-210

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Overview
Reviews
Contact Us

Features: A dual technology detection method (air pressure and sound analysis) is used. Used processing guarantees high sensitivity to the breaking of all types of glass. The sensitivity can be adjusted to compensate for various window sizes and mounting distances. The GBS-210 distinguishes itself with outstanding RF immunity. A built in LED indicator allows for easy testing and it also provides an optional alarm memory feature

TechInfo:

Power supply: 12 V DC ± 25%;
Power consumption (LED off): max.10 mA;
Maximum consumption (LED on): max. 35 mA;
Terminals size: 1 mm2;
Alarm output: normally closed, max. 60V / 50 mA, internal resistance max.16 Ohm;
Tamper output: normally closed, max. 60 V / 50 mA, internal resistance max.16 Ohm;
Detection range: max. 9 m;
Minimum glass dimensions: 0.6 x 0.6 m;
Initialization: max. 60 s;
Security level: grade 2, EN 50131-1;
Environment: II. - general indoor, (EN 50131-1) ;
Operating temperatures: -10 to +40 °C;
The product is CE marked.
