Manufacturer: AJAX

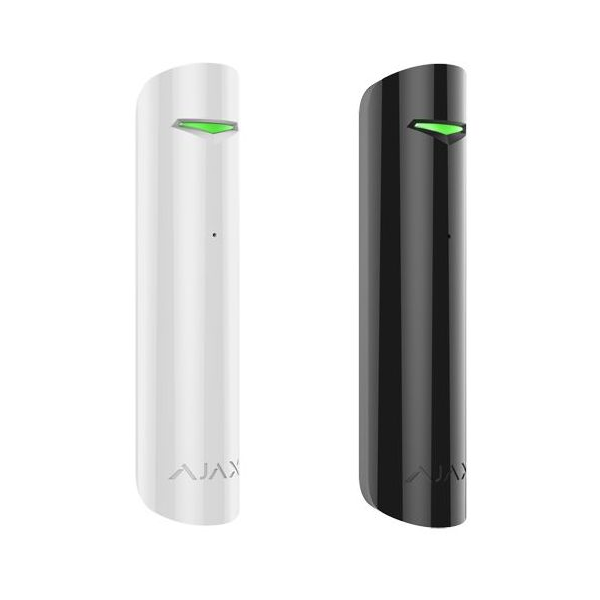

AJAX GlassProtect

Small wireless detector that notifies of glass being broken by intruders. It is installed at a distance of 9 m from the window and filters events that cause false alarms about breakage.
Glass-breaking detector via two-way radio with built-in temperature sensor. Detection 9m; 1 cable entry. CR123A lithium battery power supply; Grade 2

Principle of operation

Detects broken glass using an electret microphone, which registers the sound of impact against the glass and of the glass falling.

Features

Two-factor detection of broken glass prevents false alarms caused by thunder, dogs barking and noise from passing trucks.

Tech specs

Classification: Surface sound radio channel security detector

Type of detector: Wireless

Installation method: Indoors

Compatibility: Operates with Hub, Hub Plus, ReX, ocBridge Plus, uartBridge

Sensing element: Electret microphone

Break detection distance: Up to 9 m

Alarm signal delivery time: 0.15 s

Sensitivity: Adjustable, 3 levels

Detection angle: 180°

Power supply: Battery: CR123A battery, Power supply voltage: 3 V, Battery life — up to 7 years

Jeweller radio technology:

Communication range with central unit — up to 1,000 m in an open space
Two-way communication between devices
Operating frequencies — 868.0-868.6 MHz
Self-adjusting RF output power — up to 20 mW
Block encryption based on AES algorithm
Detector polling period — 12−300 s

Temperature sensor: Available

Operating temperature range: From +5°С to +40°С

Permissible humidity: Up to 75%

Anti-sabotage: Protection against fraud, Jamming detection, Tamper-resistant

Remote setting and testing: +

Dimensions: Diameter: 20 mm, Height: 90 mm

Weight: 30 g

Certification: Grade 2, CE

Warranty: Replacement and repair within 24 months of the date of sale. Batteries are not covered under warranty.

Complete set:

GlassProtect glass break detector
SmartBracket mounting panel
CR123A battery (pre-installed)
External contact
Installation set
User’s guide

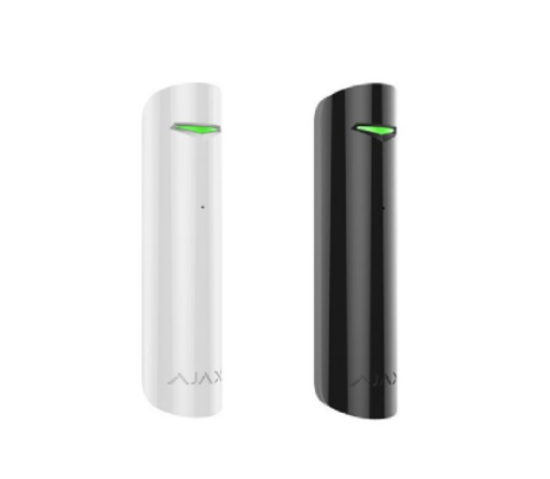

AJAX GlassProtect-White

€51.66 incl tax

Small wireless detector that notifies of glass being broken by intruders. It is installed at a distance of 9 m from the window and filters events that cause false alarms about breakage.

SKU: AJ-GLASSPROTECT-W
