Contactless control without reliability compromises

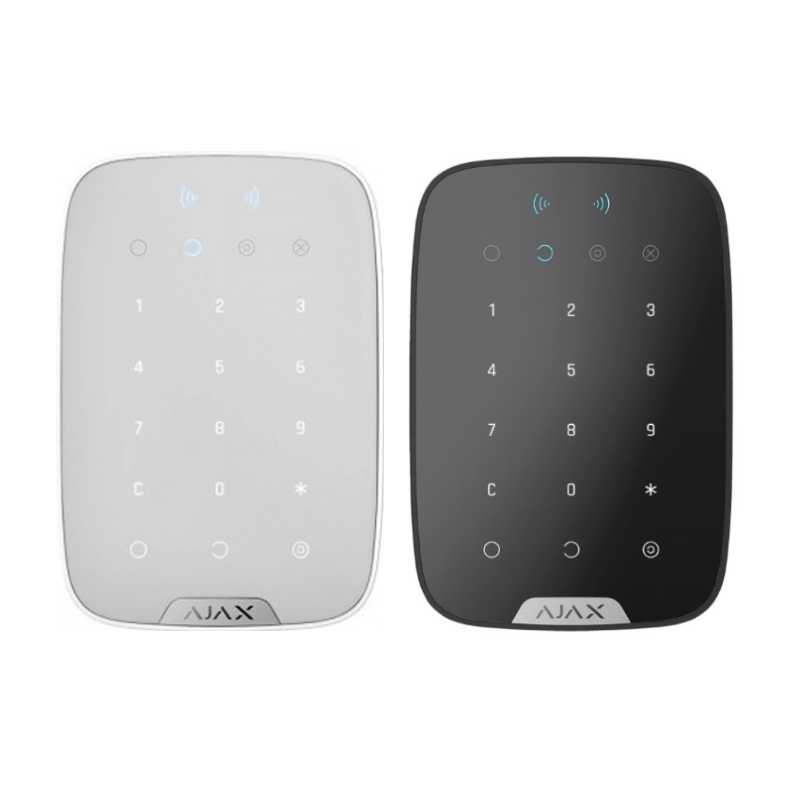

KeyPad Plus is a combination of design, advanced encryption technology, and elaborated user experience for the most straightforward and protected security management. Arm and disarm Ajax, activate Night Mode and manage specific groups with a Pass card or Tag1 key fob.
KeyPad Plus is supported by Hub Plus, Hub 2 and Hub 2 Plus control panels
Top-tier data protection
To identify users quickly and securely, KeyPad Plus features the DESFire® technology. It is the best-in-class contactless solution to identify a user by card or key fob.
DESFire® is based on the ISO 14443 international standard and combines comprehensive 128-bit encryption and copy protection. This technology is also used in transportation systems of European capitals and access systems at NASA.
The all-new KeyPad Plus firmware gets the most out of the pre-installed batteries. Even with daily use of the contactless identification function, the keypad will work for 3.5 years without replacing batteries. And with the card and key fob reader disabled, the battery life reaches 4.5 years. KeyPad Plus will warn a monitoring station and users in advance about the need to replace the batteries.
Remote access control
Set up personal passcodes to know who and when disarmed the system: a username is displayed in the notification and in the event log. Pass or Tag can also be assigned to a specific user with defined permissions to control security of specific groups or the entire site. Ajax app allows you to manage access permissions in real time. You can limit, extend, or instantly block access.
Adding users. Fast and easy.
Ajax systems support up to 200 Tags or Passes2. When adding them, you do not need to create Ajax accounts for new users, you just need to name a device and define access permissions. This makes it easier to delegate access to the system control to temporary employees or incoming staff.
Multilevel anti-sabotage system
Users and a security company receive a notification when someone removes the keypad from the moun
|Blocking when guessing passcode|
Three wrong passcodes entered in a row block the keypad and trigger an alarm
If there is an attempt to use an invalid card or key fob, the system activates an alarm
The system detects the communication loss with the keypad in less than a minute
Silent alarm transmission to a monitoring station
If attackers force to disarm the system
Duress code allows you to simulate disarming via KeyPad Plus. The user is not disclosed by sirens, the app and the keypad indication, but the alarm signal is instantly transmitted to a central monitoring statio
KeyPad Plus is connected and configured in Ajax apps. No need to disassemble the enclosure or install batteries. Adding to the system is done via simply scanning a QR code. An installation engineer only needs to test the device, add cards and set up access permissions.
Keypad type: Capacitive touch keypad
Installation: Indoor only
Compatibility: Hub Plus, Hub 2, Hub 2 Plus, ReX with OS Malevich 2.11 and higher
Personal passcodes: Yes
Passcode guessing protection: Yes
Duress code: Yes
Contactless access: DESFire® EV1, EV2 | ISO14443-А (13,56MHz)
Power supply: Batteries: 4 lithium AA (FR6)
Battery life: up to 4.5 years
Temperature sensor: Available
Jeweller radio technology:
Communication range with central unit — up to 1,700 m
Two-way communication between devices
Operating frequencies — 868.0–868.6 MHz5
Self-adjusting RF output power — up to 20 MW
Block encryption with a dynamic key
Ping period — 12–300 s
Operating temperature range: From –10°C to +40°C
Operating humidity: Up to 75%
Dimensions: 165 × 113 × 20 mm
Weight: 267 g
Certification: EN 50131, complies with the requirements of the technical regulations for radio equipment
Warranty: 24 months
SmartBracket mounting panel
4 × АА batteries (pre-installed)
Cards and key fobs are sold separately
Depending on the hub model: Hub 2 — up to 50 users, Hub Plus — up to 99, Hub 2 Plus — up to 200.
