Manufacturer: AJAX

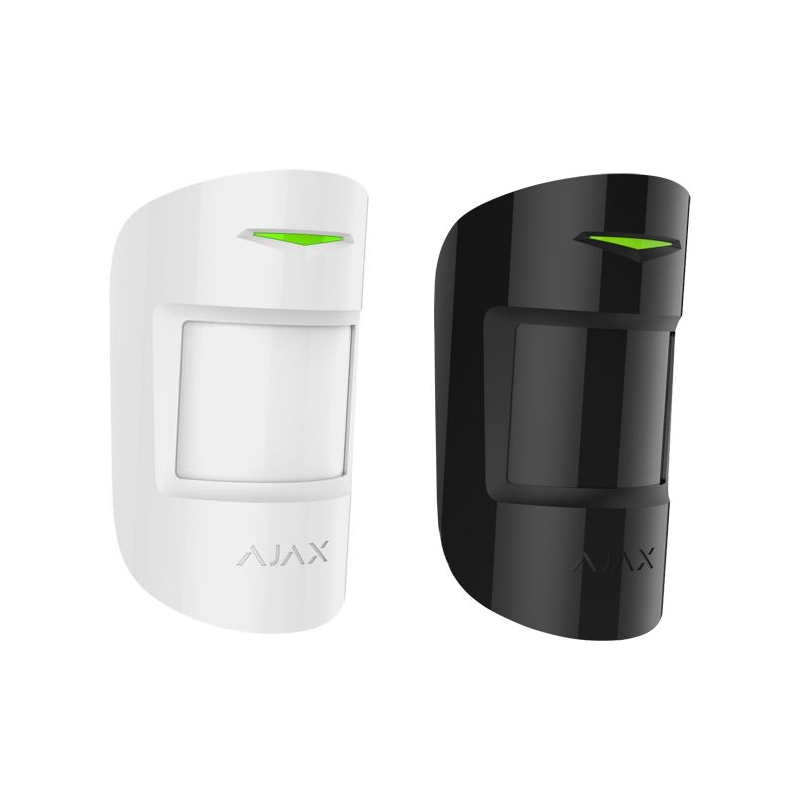

AJAX MotionProtect

Wireless motion detector that notifies the owner of the first signs of home or office intrusion. The detector is fastened to the wall in front of the doors and other places likely of intruder entry.

Two-way radio PIR detector with built-in temperature sensor (immune to animals up to 20kg). 12m detection. CR123A lithium battery power supply. Grade 2. (Available in Black MotionProtect-Black.)

Principle of operation

The device detects human presence by IR level using a passive IR sensor. The data received is digitally processed in order to prevent false alarms.

Features

The device automatically increases or decreases the sensor sensitivity in order to accurately detect motion during hot and cold weather.

Tech specs

Classification: Electro-optical combined radio channel security detector

Type of detector: Wireless

Installation method: Indoors

Compatibility: Operates with Hub, Hub Plus, ReX, ocBridge Plus, uartBridge

Sensing element: PIR sensor

Alarm signal delivery time: 0.15 s

Motion detection distance: Up to 12 m

Detection angles: Horizontal — 88.5°, Vertical — 80°

Sensitivity: Adjustable, 3 levels

Recommended installation height: 2.4 m

Pet immunity:Weight — up to 20 kg, Height — up to 50 cm

Power supply:Battery: CR123A battery, Power supply voltage: 3 V, Battery life — up to 7 years

Jeweller radio technology:

Communication range with central unit — up to 1,700 m in an open space
Two-way communication between devices
Operating frequencies — 868.0—868.6 MHz
Self-adjusting RF output power — up to 20 mW
Block encryption based on AES algorithm
Device polling period — 12−300 s

Temperature sensor: Available

Operating temperature range: From +5°С to +40°С

Permissible humidity: Up to 75%

Anti-sabotage: Protection against fraud, Jamming detection, Tamper-resistant

Remote setting and testing: +

Dimensions: 110х65×50 mm

Weight: 86 g

Certification: Grade 2, CE

Warranty: Replacement and repair within 24 months of the date of sale. Batteries are not covered under warranty.

Complete set:

MotionProtect motion detector
SmartBracket mounting panel
CR123A battery (pre-installed)
Installation set
User’s guide

AJAX MotionProtect White

€51.66 incl tax

Wireless motion detector that notifies the owner of the first signs of home or office intrusion. The detector is fastened to the wall in front of the doors and other places likely of intruder entry.

SKU: AJ-MOTIONPROTECT-W

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Qty:

AJAX MotionProtect Black

€51.66 incl tax

Wireless motion detector that notifies the owner of the first signs of home or office intrusion. The detector is fastened to the wall in front of the doors and other places likely of intruder entry.

SKU: AJ-MOTIONPROTECT-B

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Qty:

Overview
Reviews
Contact Us

Two-way radio PIR detector with built-in temperature sensor (immune to animals up to 20kg). 12m detection. CR123A lithium battery power supply. Grade 2. (Available in Black MotionProtect-Black.)

Principle of operation

The device detects human presence by IR level using a passive IR sensor. The data received is digitally processed in order to prevent false alarms.

Features

The device automatically increases or decreases the sensor sensitivity in order to accurately detect motion during hot and cold weather.

Tech specs

Classification: Electro-optical combined radio channel security detector

Type of detector: Wireless

Installation method: Indoors

Compatibility: Operates with Hub, Hub Plus, ReX, ocBridge Plus, uartBridge

Sensing element: PIR sensor

Alarm signal delivery time: 0.15 s

Motion detection distance: Up to 12 m

Detection angles: Horizontal — 88.5°, Vertical — 80°

Sensitivity: Adjustable, 3 levels

Recommended installation height: 2.4 m

Pet immunity:Weight — up to 20 kg, Height — up to 50 cm

Power supply:Battery: CR123A battery, Power supply voltage: 3 V, Battery life — up to 7 years

Jeweller radio technology:

Communication range with central unit — up to 1,700 m in an open space
Two-way communication between devices
Operating frequencies — 868.0—868.6 MHz
Self-adjusting RF output power — up to 20 mW
Block encryption based on AES algorithm
Device polling period — 12−300 s

Temperature sensor: Available

Operating temperature range: From +5°С to +40°С

Permissible humidity: Up to 75%

Anti-sabotage: Protection against fraud, Jamming detection, Tamper-resistant

Remote setting and testing: +

Dimensions: 110х65×50 mm

Weight: 86 g

Certification: Grade 2, CE

Warranty: Replacement and repair within 24 months of the date of sale. Batteries are not covered under warranty.

Complete set:

MotionProtect motion detector
SmartBracket mounting panel
CR123A battery (pre-installed)
Installation set
User’s guide
