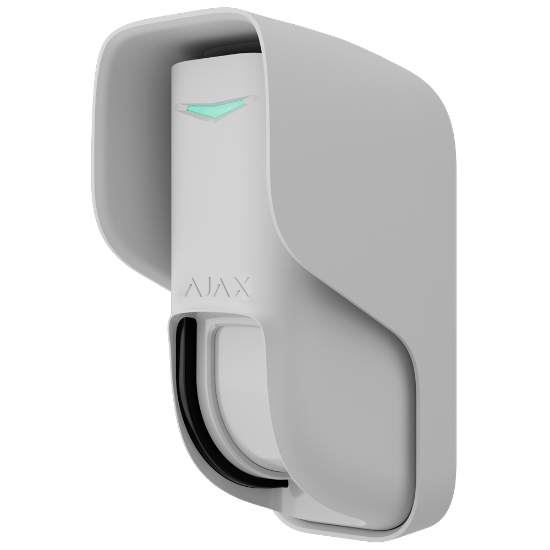

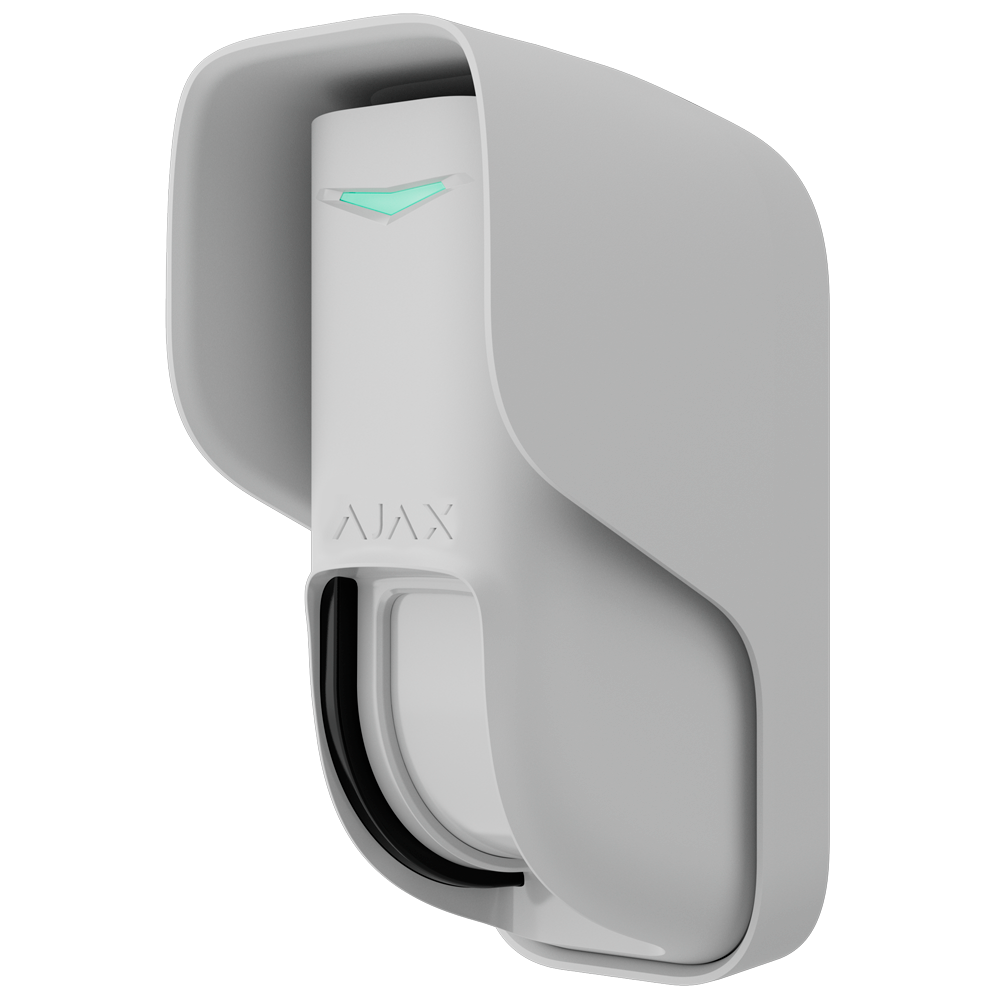

    Outdoor Curtain Sensor

    Be the first to review this product
    €166.44 incl tax
    Outdoor curtain type detector
    Dual PIR curtain and microwave (24 GHz)
    868MHz Jeweller Wireless
    Grade 2 approved
    Detection range 8~12 m / Antimasking
    Reach in open space 1700 m
    SKU: AJ-CURTAINOUTDOOR-W
    Ship to
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options

    Curtain Outdoor Jeweller is a motion detector for covering the perimeter of a site with exceptional accuracy and a near-zero chance of false alarms. Featuring a unique optical system, the device looks over narrow sectors of up to 12 m long. Dual motion detection technology engaging two PIR sensors and one Ka-band microwave sensor allows filtering out false alarms caused by thermal noise, animals, or plants. The detection range and pet immunity mode are configured via a slider on the detector’s enclosure, and sensitivity is configured in Ajax apps to meet the specific needs of the site. Pre-installed batteries ensure stable performance for up to three years.



    Technology Dual curtain-type PIR with K-band microwave (24 GHz)
    Detection range 8~12 m / 8º H / 85º V / Installation 2.4 m
    Frequency 868 MHz Jeweller
    Transmission distance ≤ 1700 m in open space
    Anti-masking Available
    Sensitivity Adjustable. 3 levels (high, medium, low)
    Detection range configuration In the device (Far: to 12 m / Near: to 8 m / Pet: anti-pet up to 12 m)
    Tamper-resistant opening Available
    LEDs indication Alarm, tamper, signal
    Anti-pet Pets up to 100 cm (height installation): 1 m)
    Compatibility Compatible with Ajax Hub 2 (2G and 4G), Hub 2 Plus, Hub Hybrid (2G and 4G) and ReX 2
    Firmware Upgrade Available. Remote OTA (Over-the-air) updates
    Power 2 batteries CR123A 3.0 V (approximate life time 3 years)
    Temp. operation -25 ºC ~ 60 ºC
    Operating humidity 95%
    Degree of protection IP55
    Brackets Includes SmartBracket, angle bracket and cover
    Dimensions with cover 155 (H) x 77 (W) x 85 (D) mm
    Dimensions without cover 141 (H) x 50 (W) x 72 (D) mm
