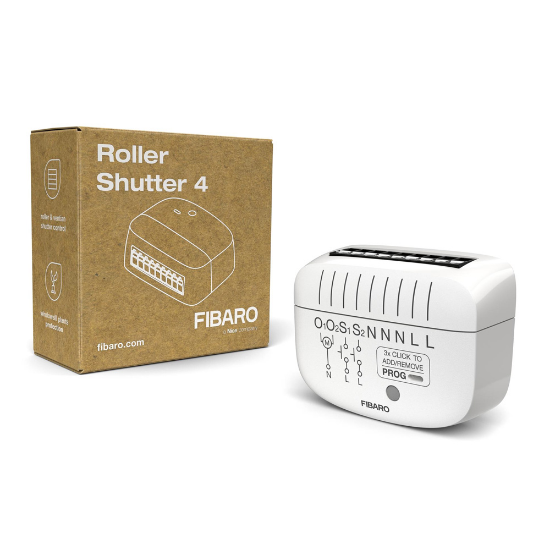

Micromódulo de estores 4

New devices design
FIBARO focused on easy installation and intuitive first run. There are more inputs for N and L wires, so that allows opt-out from using splicing connectors.

Smaller device
Device's shape and dimension enable easy and fast installation in flush-mounted boxes. Button and the diode are easily accesible.

Equipped with plug connectors
Enable even faster assembly - no need to use screw driver.

3 Extra connecting cables included in the box
Additional wires to connect the button are included.

Inbuilt Bridge
Easy bridging option for live and neutral. There is no need to use wago connectors for connecting wires. You save the space in the box and shorten installation time thanks to push-in wires connector.

Features of Fibaro Roller Shutter 4

• Compatible with any Z-Wave or Z-Wave+ Controller
• One of the smallest shutter controller available
• Equipped with Z-Wave 800 chip to provide better range
• Supports Z-Wave network Security Modes: S0 with AES-128 encryption and S2 Authenticated with PRNG-based encryption
• Can be used with roller blinds, venetian blinds, pergolas, curtains, awnings, blind motors with electronic or mechanical limit switches
• Active power and energy metering functionality
• Works as a Z-Wave signal repeater (all non-battery operated devices within the network will act as repeaters to increase reliability of the network
• Works with various types of switches – momentary, toggle and dedicated roller blind switches
• Easy and quick too install thanks to push-in wires connector and inbuilt bridge
• To be installed in wall switch boxes

Technical specifications of FIBARO FGR-224

• Power supply: 100-240V~50/60Hz
• Rated load current: 2A for motors with compensated power factor (inductive loads)
• Supported motor type: single-phase AC motors
• Required limit switches: electronic or mechanic
• Operating temperature: 0°C - 35°C
• For installation in boxes: Ø = 50mm, depth ≥ 60mm
• Radio protocol: Z-Wave (800 series chip)
• Radio signal power: up to 5dBm
• Radio frequency band: 868.4 MHz
• Range: up to 100m outdoors, up to 30m indoors (depending on the terrain and building structure)
• Dimensions (L x W x H) 46mm x 36mm x 19,9mm
• Compliance with EU directives: RoHS 2011/65/EU, RED 2014/53/EU
