1 & 2-Way Smoke & Heat Detector

€122.93 incl tax

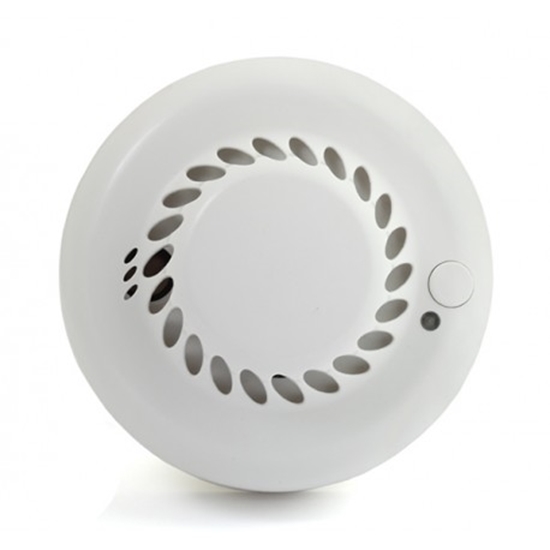

Electronics Line’s EL-5803 Wireless Smoke and Heat Detector combine advanced technologies within a compact and streamlined design, the ideal choice for homeowners seeking the highest safety standards.
Smoke is detected employing an advanced photoelectric chamber, whiletemperature is monitored with two separate heat sensors that measure the rate-of-rise, as well as the absolute temperature. With a choice of selecting either smoke or heat detection or a combination the two, the Smoke and Heat Detector offers a more sensitive and dependable product for early detection of fire hazards in different environments with a reduced risk of false alarms.
The Smoke Detector is EN14604:2005/AC:2008 certified, easy to install, and is compatible with all Electronic Line’s 1 and 2-way wireless systems.

SKU: EL5803

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Qty:

Overview
Reviews
Contact Us

Features:

Wireless, combined smoke and heat detection

Heat-only mode enables installing in harsh environments, such as kitchens or bathrooms
Earlier detection is achieved from fast temperate rate-of-rise before smoke is detected

Simple battery replacement performed by the customer
Two heat sensors measuring the fixed temperature and rate-of-rise provide accurate readings and high false-alarm immunity
Compatible with all Electronic Line’s 1 and 2-way wireless systems
Visual LED indicates alarms, standby mode, and low battery
Built-in test button activates the self test and alarm-sounding
85dB alarm sound
Powered by two CR123 3V lithium batteries (supplied)
Cover and wall tampers

TechInfo:

Smoke Detection: Photoelectric chamber
Heat Detection: Dual-sensor with fixed temperature and rate-of-rise
Certification: EN14604:2005/AC:2008
Operating Modes:

Smoke + Heat (OR logic)
Smoke only
Heat only

Wireless RF Modes: Selectable 1-way or 2-way
Alarm Sound Level: Exceeds 85dB at 3m (10’)
Typical Average Standby Current: 0.02mA typical
Typical Alarm Current: 100mA
Typical Battery Life: Typically 3 years
Battery Type: Two CR123 3V lithium batteries
Low Battery Threshold: 2.5 V
Low Battery Beep rate: One beep every 30 seconds
Low Battery Life: 30 days from warning signal
Operating Temperature: 14°F - 104°F (-10°C to 40°C)
Operating Humidity: 10% to 85% RH, no condensation or icing
Color: White
Dimensions: Diameter: 4.25 in (108 mm)
Height: 2 in (53 mm)
Transmitter Characteristics:

Nominal Center Frequency: Smoke & Heat Detector, 1 & 2 way 433 MHz Smoke & Heat Detector, 1 & 2 way 868 MHz
Supervision Time: 15 min. for 868 MHz / 65 min. for 433 MHz
