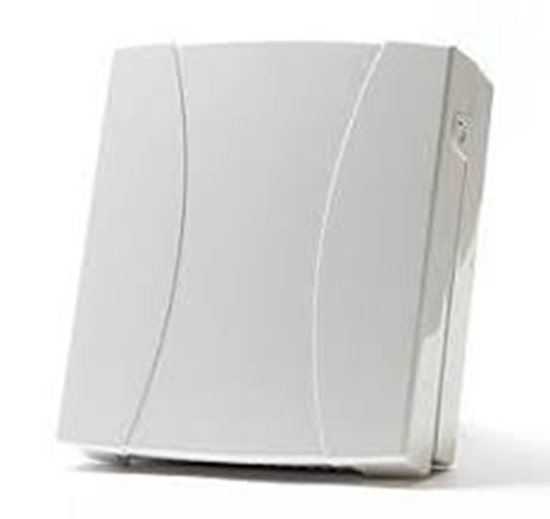

2-Way Wireless Input/Output Expander

€111.73 incl tax

The 2-Way Wireless Input/ Output Expander serves two purposes; as an extension module enabling wired devices to be connected to the iConnect 2-Way Control System and permitting programmable outputs, thus allowing the connection of auxiliary electrical devices to the iConnect system which can be controlled either using the smartphone app or a keyfob.

SKU: EL4770

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Overview
Reviews
Contact Us

Features: Bi-directional wireless communication
8 zone inputs (NO, NC, EOL, DEOL)
Up to 2 per system, meaning up to 16 wired zones + 2 on the iConnect 2-Way main board
2 auxiliary parallel outputs 12 volts@1000mA per expander
PGM-Programmable Outputs: Dry contact, 1A@30VDC,0.5A@25VDC
Fully supervised
Dual tamper protection (Box & Wall)
Stand alone with local power (no need to run wires to the panel)
Includes a polycarbonate box
Optional back-up battery 12V/7AH
Frequency: 868 and 433 MHz
