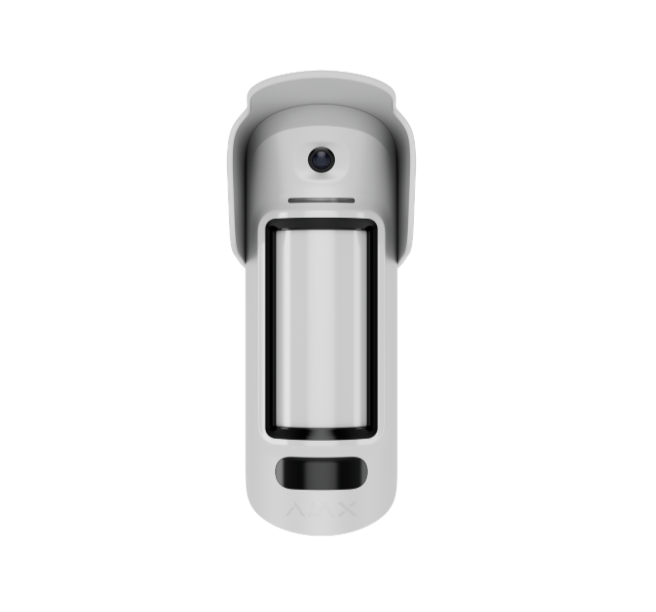

AJ-CURTAINCAM-OUTDOOR-HIGHMOUNT-PHOD - Outdoor Curtain Detector

This perimeter security device provides a highly precise invisible virtual barrier, designed for the protection of windows, doors, storefronts, and gates, while allowing free movement within the established perimeter. The High Mount model was specifically developed for elevated installation (up to 3 meters), ensuring an unobstructed view and offering superior protection against sabotage attempts, tampering, or accidental physical blockages at ground level.

Through advanced PhOD (Photo on Demand) technology, the detector automatically captures a photographic sequence in the event of an alarm trigger. Additionally, the user can request real-time images at any moment via the mobile application. To guarantee maximum reliability, the equipment features pet immunity and a rigorous Grade 3 anti-masking system, instantly detecting attempts to block or paint over the lenses.

Technical Specifications:

• Sensor Type: 2 × Independent PIR sensors with digital processing.

• Detection Range: Adjustable from 3 to 15 meters.

• Detection Angle: Horizontal 4.5° / Vertical 90°.

• Recommended Installation Height: Between 2.4 m and 3.0 m.

• Built-in Camera: Adaptive resolution with IR illumination for night vision.

• Photographic Features: Photo by alarm, Photo on demand (PhOD), Photo by scenario.

• Anti-masking System: Yes, Grade 3 active protection against blocking and painting.

• Pet Immunity: Yes, up to 80 cm in height.

• Protection Grade: IP55 (Superior weather resistance).

• Power Supply: Pre-installed batteries (up to 3 years of autonomy).
