Manufacturer: AJAX

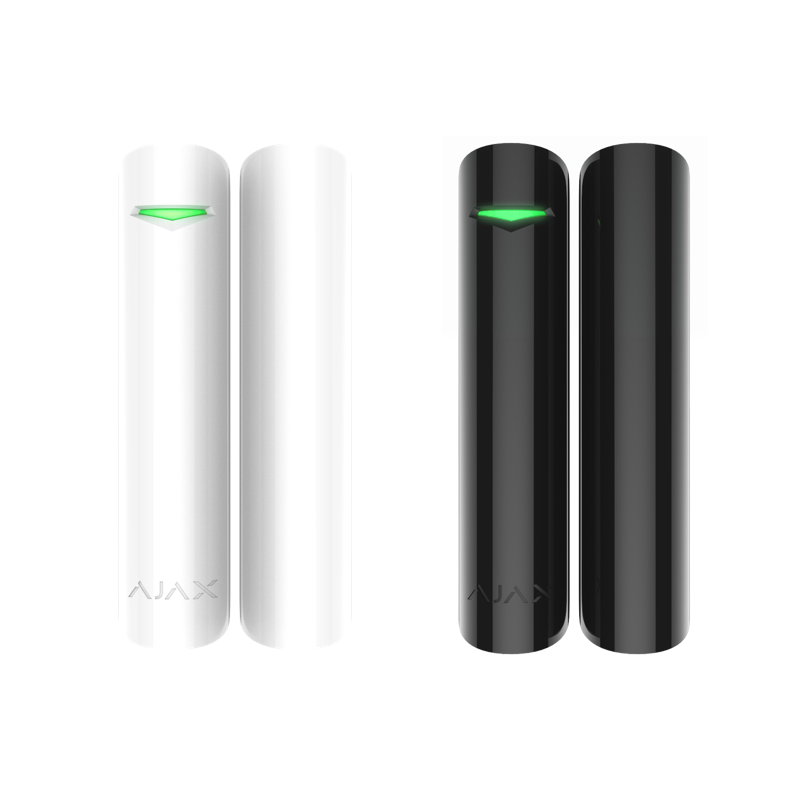

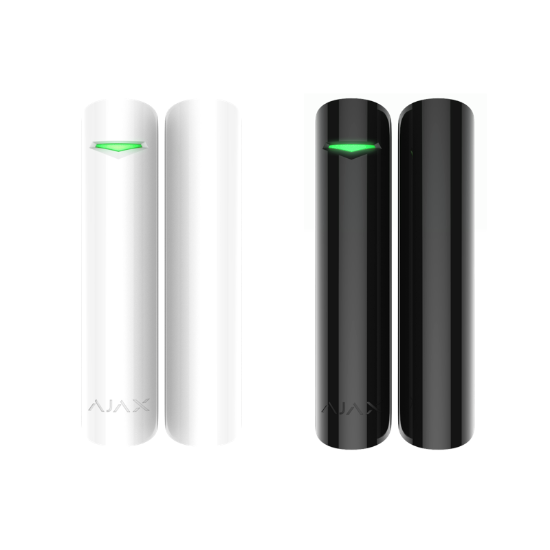

AJAX DoorProtect

Be the first to review this product

€31.00 incl tax

Wireless opening detector that notifies of first signs of room intrusion by means of a broken door or window. It can be mounted on all types of doors including a metal base.

SKU: AJ-DOORPROTECT

Color *

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Qty:

Overview
Reviews
Contact Us

Bi-directional radio magnetic contact with temperature sensor; 1 cable entry. CR123A lithium battery power supply; Grade 2. (Available in white DoorProtect-White.)

Principle of operation

The device detects the door or window being opened by means of British-made hi-end reed switches on which the magnetic field acts. It can operate in the transmitter mode, sending a signal from the wired sensor to the hub.

Features

The device consists of two modules — detector and magnet. The set includes two magnets: the big magnet is installed at a distance of up to 2 cm, and the small magnet up to 1 cm.

Tech specs

Classification: Point magnetic and contact radio channel security detector

Type of detector: Wireless

Installation method: Indoors

Compatibility: Operates with Hub, Hub Plus, ReX, ocBridge Plus, uartBridge

Sensing element: Reed switch

Alarm signal delivery time: 0.15 s

Activation threshold: Small magnet — 1 cm, Big magnet — 2 cm

Power supply, Battery: CR123A battery, Power supply voltage: 3 V, Battery life — up to 7 years

Jeweller radio technology:

Communication range with central unit — up to 1,200 m in an open space
Two-way communication between devices
Operating frequencies — 868.0-868.6 MHz
Self-adjusting RF output power — up to 20 mW
Block encryption based on AES algorithm
Detector polling period — 12−300 s

Temperature sensor: Available

Operating temperature range: +5°С to +40°С

Permissible humidity: Up to 75%

Anti-sabotage: Protection against fraud, Jamming detection, Tamper-resistant

Remote setting and testing: +

Dimensions: Diameter: 20 mm, Height: 90 mm

Weight: 29 g

Certification: Grade 2, CE

Warranty: Replacement and repair within 24 months of the date of sale. Batteries are not covered under warranty.

Complete set:

DoorProtect opening detector
SmartBracket mounting panel
Two magnets
CR123A battery (pre-installed)
External contact
Installation set
User’s guide

Your name *

Your email *

Subject: *

Enquiry *

Bi-directional radio magnetic contact with temperature sensor; 1 cable entry. CR123A lithium battery power supply; Grade 2. (Available in white DoorProtect-White.)

Principle of operation

Features

The device consists of two modules — detector and magnet. The set includes two magnets: the big magnet is installed at a distance of up to 2 cm, and the small magnet up to 1 cm.

Tech specs

Classification: Point magnetic and contact radio channel security detector

Type of detector: Wireless

Installation method: Indoors

Compatibility: Operates with Hub, Hub Plus, ReX, ocBridge Plus, uartBridge

Sensing element: Reed switch

Alarm signal delivery time: 0.15 s

Activation threshold: Small magnet — 1 cm, Big magnet — 2 cm

Power supply, Battery: CR123A battery, Power supply voltage: 3 V, Battery life — up to 7 years

Jeweller radio technology:

Communication range with central unit — up to 1,200 m in an open space
Two-way communication between devices
Operating frequencies — 868.0-868.6 MHz
Self-adjusting RF output power — up to 20 mW
Block encryption based on AES algorithm
Detector polling period — 12−300 s

Temperature sensor: Available

Operating temperature range: +5°С to +40°С

Permissible humidity: Up to 75%

Anti-sabotage: Protection against fraud, Jamming detection, Tamper-resistant

Remote setting and testing: +

Dimensions: Diameter: 20 mm, Height: 90 mm

Weight: 29 g

Certification: Grade 2, CE

Warranty: Replacement and repair within 24 months of the date of sale. Batteries are not covered under warranty.

Complete set:

DoorProtect opening detector
SmartBracket mounting panel
Two magnets
CR123A battery (pre-installed)
External contact
Installation set
User’s guide
