Manufacturer: AJAX

AJ-LIGHTCORE-CROSS - Cross Switch Core

€74.56 incl tax

Wireless smart relay for Ajax LightSwitch crossover (intermediate) switches.
Jeweller technology (868 MHz) with up to 1100m range.
No neutral wire required.
Touchless activation when bringing a hand within 15 mm.

SKU: AJ-LIGHTCORE-CROSS

Position *

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Qty:

Overview
Reviews
Contact Us

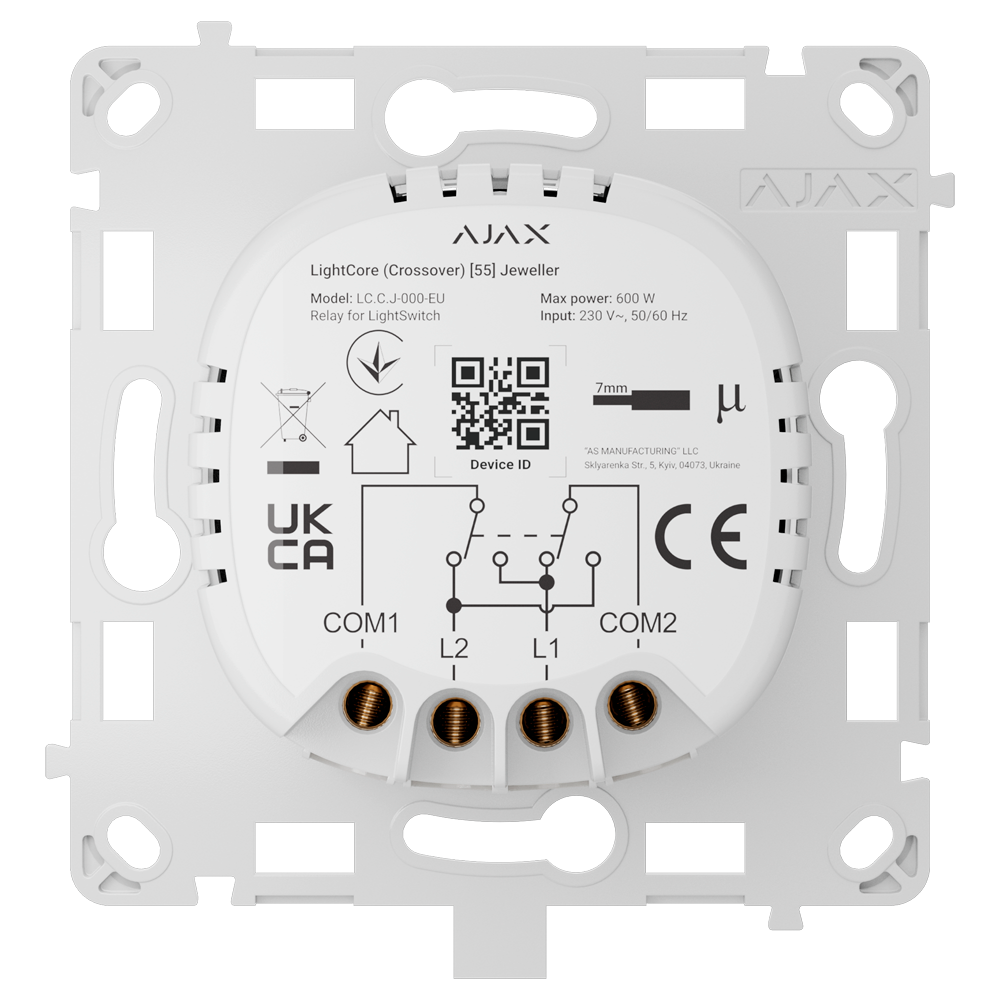

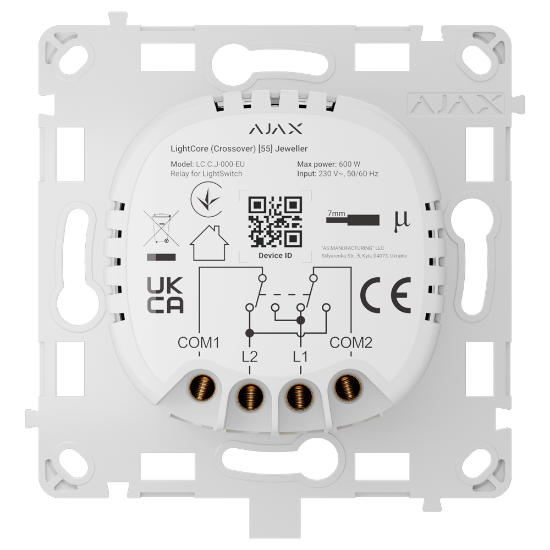

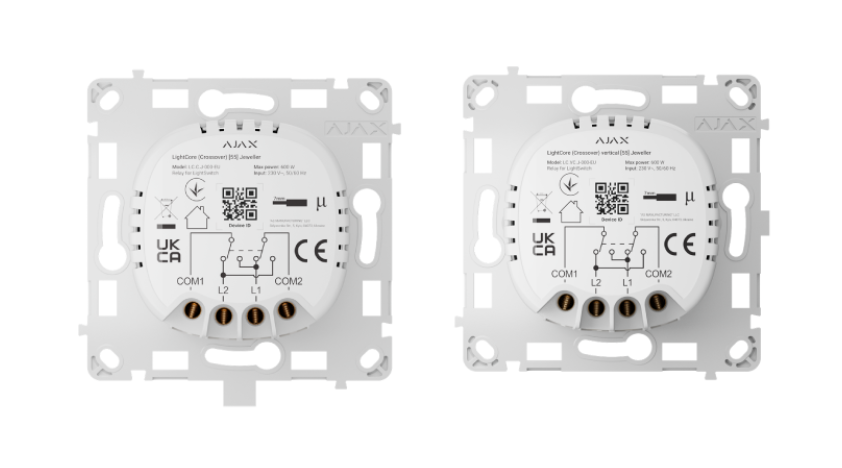

The Ajax LightCore Crossover is a smart relay designed to create intermediate light switches within the Ajax LightSwitch ecosystem. It is the ideal technical solution for controlling the same lighting circuit from three or more different locations. It features simplified installation and an advanced sensor that allows turning the light on or off without physical contact.

Technical Specifications:

Model: Ajax LightSwitch LightCore (Crossover)
Function: Relay for smart crossover (intermediate) light switch
Communication Protocol: Jeweller (Wireless 868 MHz, bidirectional)
Radio Range: Up to 1100 meters (in open space)
Power Supply: 230 V AC / 50 Hz
Wiring: No neutral wire required for operation
Interaction: Proximity activation (touchless) by bringing a hand within 15 mm of the panel

Write your own review

Only registered users can write reviews

Review title: *

Review text: *

Rating:

Bad
Excellent

Your name *

Your email *

Subject: *

Enquiry *

Technical Specifications:

Model: Ajax LightSwitch LightCore (Crossover)
Function: Relay for smart crossover (intermediate) light switch
Communication Protocol: Jeweller (Wireless 868 MHz, bidirectional)
Radio Range: Up to 1100 meters (in open space)
Power Supply: 230 V AC / 50 Hz
Wiring: No neutral wire required for operation
Interaction: Proximity activation (touchless) by bringing a hand within 15 mm of the panel
