    Manufacturer: Zipato

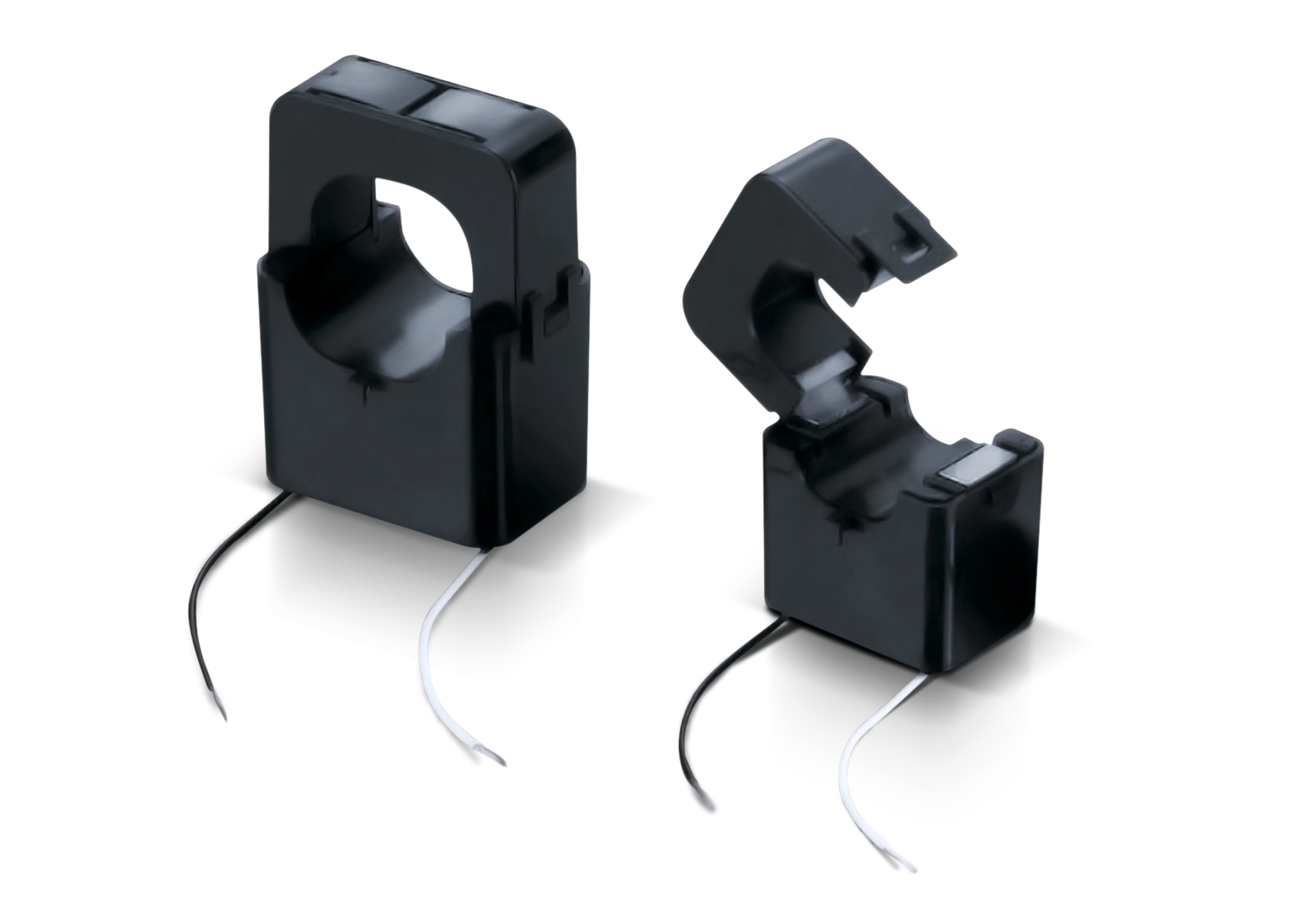

    Current Clamp Power module

    €25.01 incl tax

    The ZipaBox Current Clamps are used for energy monitoring with the Zipato Power Module (not included) to sense the current of monitored channels.

    Complements the Expansion Module ZWZIP_ZBMPOWER.

    SKU: AMPCLAMP35
    Ship to
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options





    TechInfo:

    • Current ratio: 120A / 40mA;
    • Current Range: 0.01 ~ 120A (RL = 10O);
    • Maximum Continuous Current: 200A;
    • Angle error nominal phase: 1.0 ± 1 °;
    • Error nominal Linearity: ± 1% -1;
    • Turns Ratio: 3000: 1;
    • DCR: 280 ± 20O;
    • Protection level: 7.5V0-P;
    • Insulation category: CATIII;
    • Operating Temperature: -20 ° C to +50 ° C, =85% RH non-condensing;
    • Storage Temperature: -30 ° C to +90 ° C,% RH =85;
    • Dimensions: 55 x 29.5 x 31mm;

    Warning:

    Complements the Expansion Module ZWZIP_ZBMPOWER.
