    Manufacturer: X10

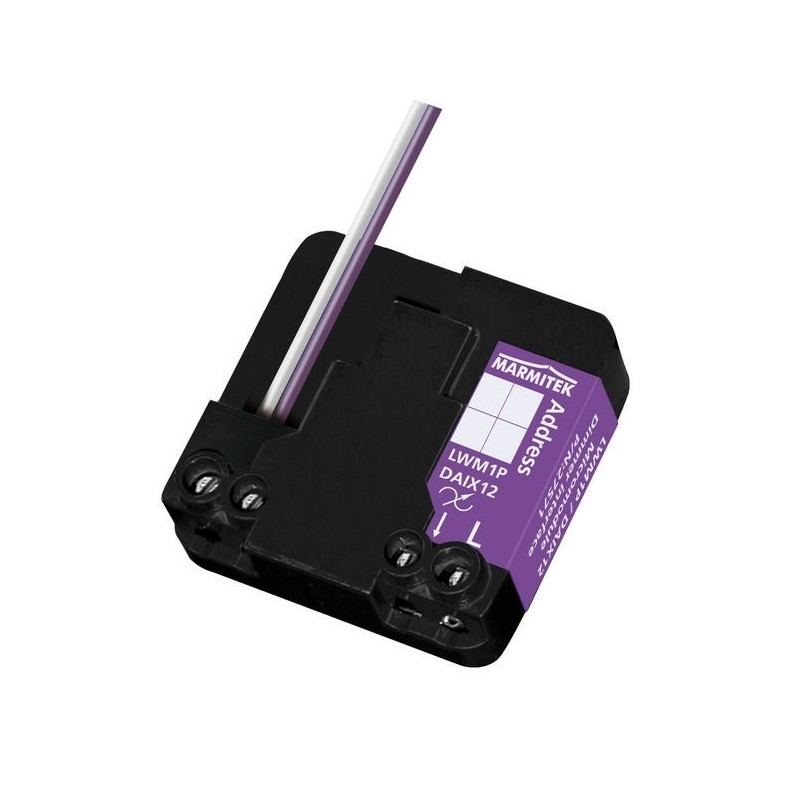

    Dimming actuator/interface 230V

    €54.74 incl tax
    €99.95 incl tax
    Dimming actuator for installation behind retractive switches and wall sockets or in distribution boxes.
    Suitable for remote or on-site operation of lighting.
    SKU: DAIX12
    Ship to
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options

    Features:

    • Transmission of ON/OFF/BRIGHT/DIM commands;
    • Responds to ON, OFF, DIM, BRIGHT and extended dim level commands;
    • One user-definable address (free programmable address) A1-P16;
    • Suitable for operation with retractive switches with 1 or 2 normally open contacts;
    • Can be used as an actuator for placing behind wall sockets (insulating connecting wires) ;



    TechInfo:

    • Rated voltage: 230Vac, 50 Hz;
    • Output: 250 W incandescent or 230Vac halogen bulbs, 200 VA Halogen lighting with wound transformer, 250 VA Halogen lighting with leading edge electronic transformer;
    • Cartridge fuse: Radial lead micro fuse, 1.6 AT, according to IEC 60127-3, standard sheet 4;
    • Current consumption: < 30 mA capacitive;
    • Signal transmission: > 5 Vpp in 5 O at 120 kHz in accordance with EN 50065-1, EN 50065-2-1, EN 50065-4-1;
    • Transmission synchronization: 1 pulse burst at 0°/180°;
    • Signal sensitivity: 25 mVpp…6 Vpp at 120 kHz ± 4 kHz;
    • Signal/noise ratio: 1,35 : 1;
    • Connection range: up to 2.5 mm2, tightening torque 0.5 Nm;
    • Minimum ambient temperature: 0°C;
    • Maximum ambient temperature: 40°C;
    • Atmospheric pressure: 86 pkA - 106 pkA;
    • Relative humidity (non condensing): 30 tot 90%;
    • Standards: NEN-EN-IEC 60669-2-1, NEN-EN-IEC 60669-2-2;
