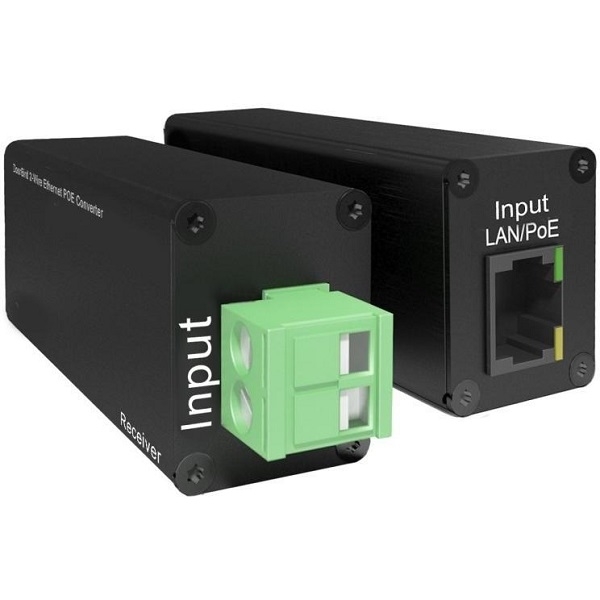

A1071 - DOORBIRD 2-WIRE ETHERNET POE CONVERTER

Features: · Use of existing cabling
· Only a two-wire cable required for both data transmission and power supply (PoE)
· Compact design, robust metal housing
· Easy and fast installation


TechInfo: Dimensions: 33 x 25 x 88 mm (H x W x D) 1,30 x 0,98 x 3,46 in (H x W x D)
Power supply: PoE-Switch or PoE-Injector (IEEE 802.3 af/at), not included
Operating conditions: -25 to 55°C / -13 to 131°F
Speed: Up to 60 mbit/s at maximum transmission range
Latency: ~ 0.01ms
Connectors: 1x RJ45, 2x screw terminals
PoE: PoE 802.3 af/at Mode-A and PoE +, up to 30 W
Data line pair: 1/2 (+), 3/6 (-)
Range: 80 meters / 262 feet with unshielded two-wire cable
Scope of delivery:
• 1 x DoorBird 2-Wire Ethernet PoE Converter Sender
• 1 x DoorBird 2-Wire Ethernet PoE Converter Receiver
• 1 x DIN-Rail adapter
Required accessories:
• 2 x Network cable, IEEE 802.3 af/at PoE Switch or PoE Injector, e.g. DoorBird Gigabit PoE Injector, D-Link DGS-1008P or TPLink TL-PoE150S
• Compatible with all DoorBird IP Video Door Stations.
Approvals: CE, FCC, RoHS, IP50
Weather-proof: No
Weight: 140 g
EAN: 4260423860360
