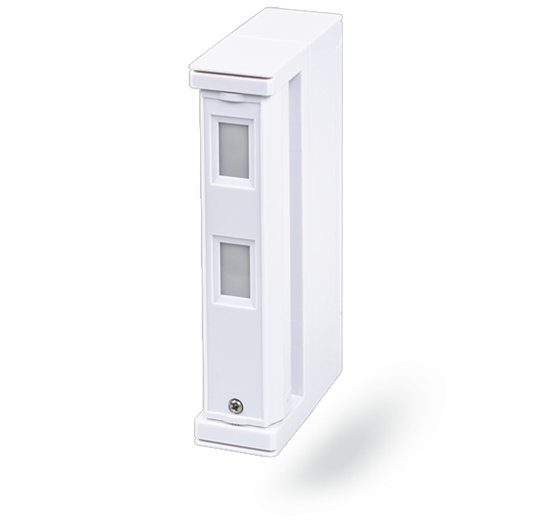

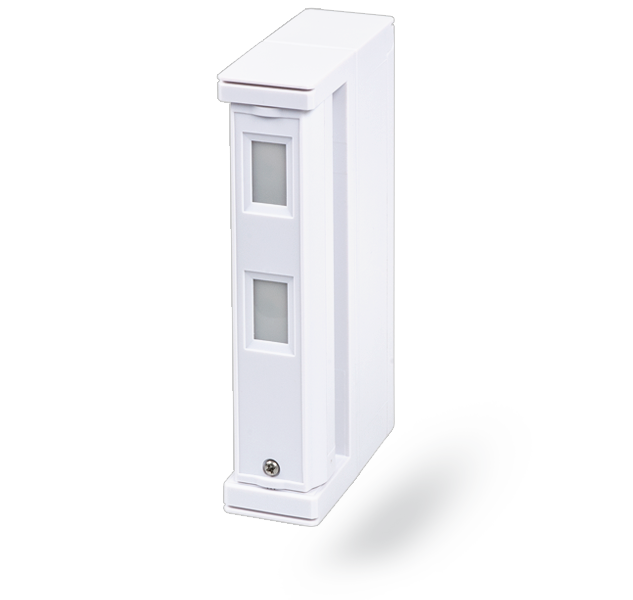

Dual zone outdoor wireless motion detector - curtain

€320.91 incl tax

The JA-87P wireless outdoor detector with curtain lens characteristics is designed to indicate disturbances outside the building caused by human bodies. It is a dual zone outdoor detector by Optex with a 5° angular width detection zone which makes it very suitable for guarding narrow spaces such as balconies, French doors, terraces, etc. It is supplemented with a transmitter compatible with JA-8x OASiS systems. Both the detector and the transmitter are powered by a lithium battery. The common power supply is beneficial as the low battery signal is transmitted to a control panel as standard. The detector is equipped with three TAMPER contacts (at the front on the detection part and the front and rear on the transmission part), which immediately report opening of the detector cover or its tearing from the place of installation. The detector can also have the anti-masking function activated. The detector reports its current status via control transmissions to the system.

SKU: JA-87P

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Availability: EOL product - confirm stock availability before ordering

Qty:

Delivery date: EOL product - confirm stock availability before ordering

Overview
Reviews
Contact Us

TechInfo:

Power: 1x type LS(T)14500 (AA 3.6 V / 2 Ah) lithium battery;
Average battery lifetime: approx. 3 years (with 120 s energy saving mode) ;
Operating frequency band: 868 MHz;
Communication range: up to 300 m with direct visibility;
Detection characteristics: 2 or 5 m / 5°;
Recommended installation height: 0.8 – 1.2 m;
Object motion speed: 0.3 – 1.5 m / s;
Detector cover conformance: IP55;
Environment according to EN 50131-1: IV;
Operating temperature range: -20°C to +60°C;
Max. relative humidity of the environment: 95%;
Security rating according to OPTEX: Complies with ETSI EN 300 220, EN 50130-4, EN 55022, EN 60950-1;
Weight: 190 g;
Can be operated according to CTU VO-R/10/06.2009-11;
