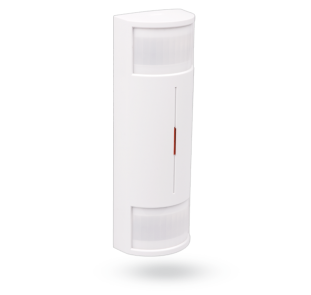

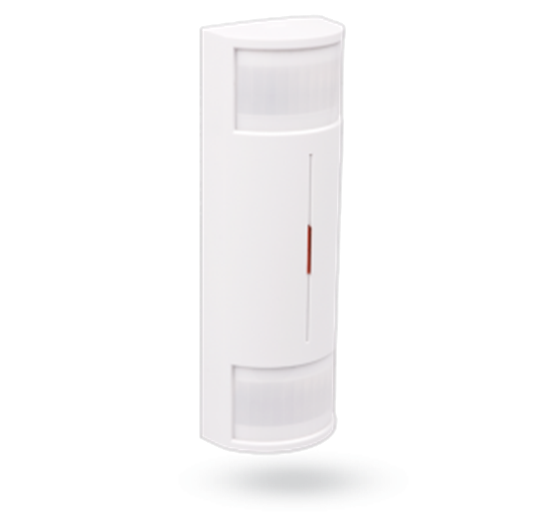

Dual zone PIR motion sensor

€55.96 incl tax

The detector is intended to detect human body movement in buildings. Using two sensors ensures better immunity against triggering by moving pets.
The signal is processed by a multiple signal analysis method which guarantees excellent sensitivity and a high resistance to false alarms. Detection analysis can be adjusted to increase its immunity (if installed in a problematic location). The detector distinguishes itself with excellent immunity against high frequency interference and other false signals. It can be installed on a flat wall or in a corner.

SKU: JS-22

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Availability: EOL product - confirm stock availability before ordering

Qty:

Overview
Reviews
Contact Us

TechInfo:

Power supply: 12 V DC ± 25%;
Power consumption (LED off): max. 3 mA;
Maximum consumption (LED on): max. 7 mA;
Terminal size: 1 mm2;
Recommended installation height 1.2 m above the floor;
Detection angle / detection range 120° / 12 m (with basic lens);
Initialisation: max. 60 s;
PIR output impulse length: 2 s;
Alarm output: normally closed 60V / 100mA;
internal resistance max.30 Ohm;
Tamper output: normally closed 60 V / 100mA;
Operational temperature range: -10 to +40 °C;
Dimensions: 180 x 60 x 55 mm;
