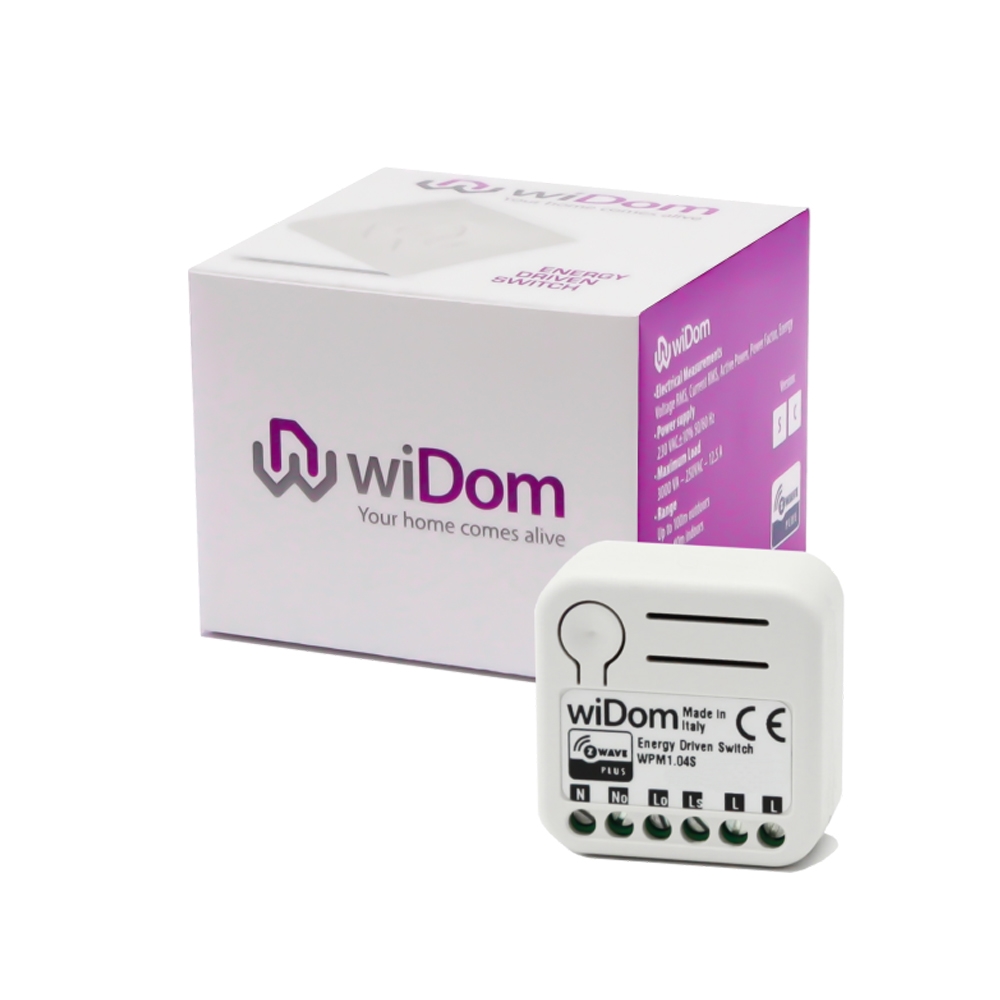

    Manufacturer: Widom

    Energy driven switch shunt version

    €72.35 incl tax
    The smallest device in its category worldwide, and the only device specifically intended for use both as a Relay Switch with integrated power meter, and as an Energy Meter either at the point of entry of your electrical system, or on a section of the latter. Version S featuring an internal shunt resistor. In addition to Power measurements, the device also provides data for Energy, Voltage, Current and Power factor.
    The only device suited for use with all types of Z-Wave controller, and capable of implementing an active energy-saving management policy defined by the user according to his energy consumption, or to the amount of energy produced by his solar power system.
    SKU: ZWWIDEWPSS
    Ship to
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options
    Features:
    • Active Energy-saving Management;
    • Control and monitoring of usage;
    • Control and monitoring of production and net metering;
    • Monitoring of all network parameters (Power, Energy, Voltage, Current, Power Factor);
    • Provides bidirectional measurements for Power and Energy (produced/consumed) ;
    • Management and prevention of electrical faults;
    • Intelligent Opening/Closing of the Relay;
    • Control of heavy loads;
    • Software Update;


    TechInfo:
    • Power Supply: 230 VAC±10% 50/60 Hz;
    • Maximum Load on Relay: 3000 VA – 250VAC – 12.5 A;
    • Work Temperature: -10 +40 °C;
    • Radio Protocol: Z-Wave 868,4 MHz;
    • Uses Z-wave Plus chip;
    • Radio Range: Up to 100 m outdoor, Up to 40 m indoor;
    • Dimensions: 37x37x17 mm;
    • Consumption: < 260 mW in standby, < 480 mW with working load;
    • Electrical IP Rating: IP 20;
    • Actuator element: Relay;
    • Conformity CE, RoHS;
    • Meter Range: ;
      • Voltage RMS: 250 V;
      • Current RMS: 12 A;
      • Active Power: ± 3000 W;
      • Energy: 2.000.000 kWh;
