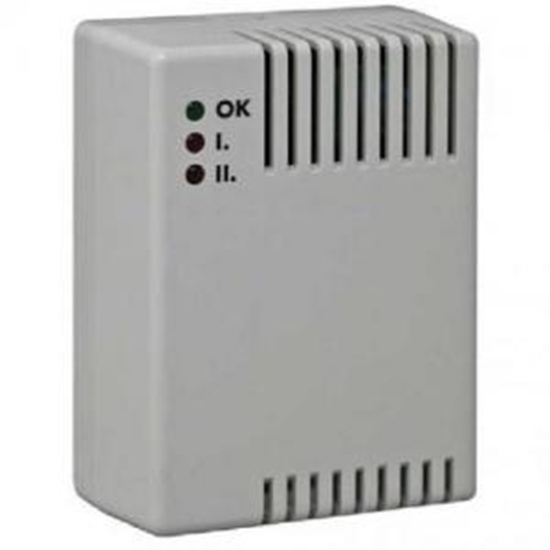

Gas Leak Detector (12VDC)

€84.87 incl tax

The GS-133 detects all mixtures of air and combustible gas (Natural Gas, Methane, Propane, Butane, Acetylene, GPL, etc). The detector detects two levels of gas concentration - with corresponding output reactions.
The main GS-133 features are: high reliability and sensitivity, compact size and long stability & lifetime.

SKU: GS-133

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Availability: EOL product - confirm stock availability before ordering

Qty:

Overview
Reviews
Contact Us

TechInfo:

Power supply: 12 V DC ± 20%;
Power consumption: 100 mA(150mA when relay is activated);
Detection method: hot wire type;
Sensitivity
- 1º nivel: 10% LEL (0,5% methane), 12,5% LEL (0,22% ISO-butane);
- 2º nivel: 20% LEL (1,0% methane), 25% LEL (0,45% ISO-butane);
Buzzer sound level: 94dB/0.3m;
Relay output: optional for 1st or 2nd level, max.230V/5A;
Alarm memory: selectable;
Response time: less then 5s;
External signaling: AUX connector;
The product has the CE mark.

LEL - Lower Explosive Limit
