    Manufacturer: Heatit

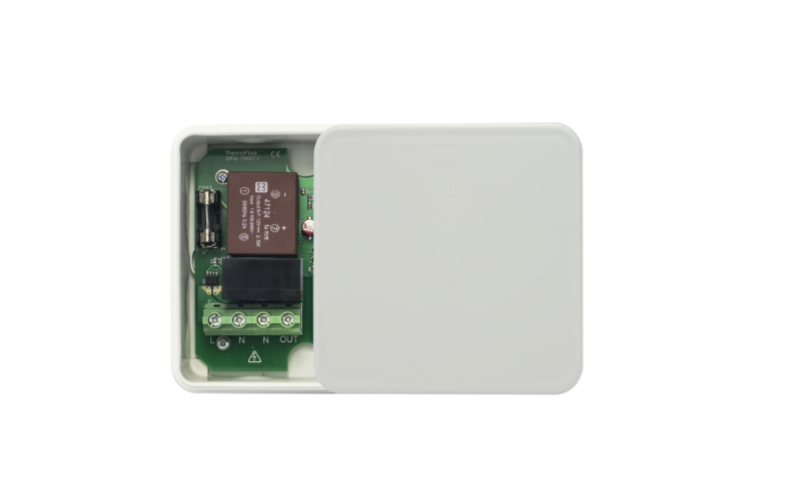

    HEATIT Z-RELAY

    €116.85 incl tax
    Heatit Z-Relay multipurpose relay module can be used for many different applications. The IP 55 rated casing makes it useful for any outdoor application. Can pull loads up to 16A and 25A. The relay has three inputs: analog or digital. You can use both analog and digital inputs, or a combination.

    Heatit Z-Relay is a multipurpose product and can be used for the following applications:
    • Boiler control
    • Leakage control
    • Temperature control
    • Outdoor applications
    The relay has 3 analog/digital inputs and can be used with a lot of different sensors and meters, from water meter pulse sensors to NTC temperature sensors.
    The relay comes in two different versions, 16A and 25A. They both have firmware updates (OTA), power metering and S2 security.
    We are able to make special firmware if a customer has a special requirement.
    SKU: 45 125 54
    Ship to
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options

    FEATURES

    • Multipurpose product for many different applications
    • Relay 16A or 25A
    • 3 inputs. Combinations of analog/digital inputs of your choice
    • External antenna option
    • Can be used in connection with different NTC-sensors
    • Calibration
    • Associations
    • Firmware updates (OTA)
    • Power metering
    • Multilevel sensor command class
    • Supports encryption mode: S0, S2 Access Control Class, S2 Authenticated Class, S2 Unauthenticated Class



    TECHNICAL DATA

    • Protocol Z-Wave
    • SDK 6.71.00
    • Rated voltage 230V 50/60Hz
    • Max load 3600W/5750W (resistive load) 750W self-limiting heating cable
    • Max current 16A or 25A
    • Power consumption <2,0W
    • Min/max installation temp -20°C – 40°C
    • Min/max operating temp -20°C – 40°C
    • Hysteresis 0,3°C – 3,0°C (default 0,5°C)
    • Compatible with NTC sensors with values 10, 12, 15, 22, 33 and 47 kΩ @ 25°C
    • Range Up to 50 meters (depending on surroundings)
    • IP Class IP 55
    • Size (LxWxD) 100 x 100 x 46 mm
    • Approvals Z-Wave Plus, CE, EMC 2014/30/EU, RoHS 2011/65/EU, LVD 2014/35/EU
