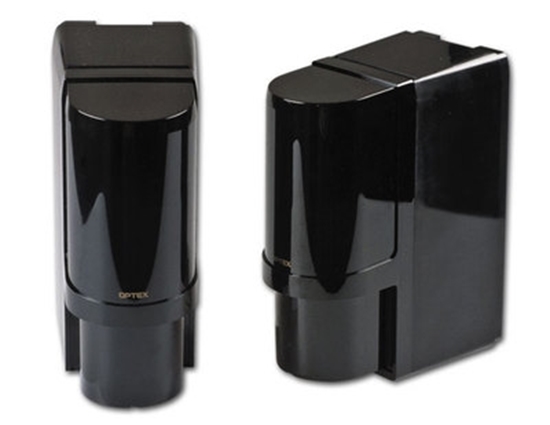

Infra-red barrier

€925.62 incl tax

The JA-80IR is designed to detect the interruption of infra-red beams by intruders walking between IR transmitters and receivers. The unit comprises an Optex sensor and a Jablotron transmitter and is powered by 4 lithium batteries. Tampering is also signalled to the control panel in addition to beam blocking and the results of regular self-testing.

SKU: JA-80IR

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Availability: Available in EOL product - confirm stock availability before ordering

Qty:

Delivery date: EOL product - confirm stock availability before ordering

Overview
Reviews
Contact Us

TechInfo:

Power 4x Lithium batteries type LSH20 (3.6 V 13 Ah)
Typical battery lifetimeapprox.3 years (energy saving mode 120 s)
Frequency band868 MHz
Radio range – distance from the control panel up to 300 m with direct visibility

Optex barrier parameters

Distance (max.) between the barrier units60 m
Barrier installation height0.7 – 1.0 m
Object motion speed as set by user
Battery saving timer120 s
Detector cover conformanceIP55
Max. relative humidity of the environment 95%
Weight 620 g
Environment according to EN 50131-1.. IV EN 50131-1
Operating temperature range-20°C to +60°C
Security ratingGrade 2 According to EN 50131-1, EN 50131-2-2, EN 50131-5-3
Can be operated according toCTU VO-R/10/06.2009-9
