Flexible Installation.

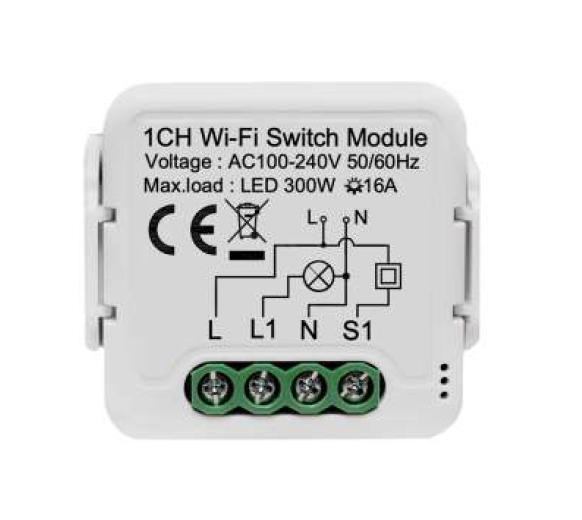

Netplus smart home switch module is originally designed to be compatible with existing normal switches, keeping its mechnical function and at the minimum change of your current electrical system or home appliances. Thanks to its miniature size, this smart switch relay fits most of the flush mounted junction boxes and light switch sockets, with no need of recontruction or rewiring. What’s more, one mounting clip is available with the Tuya smart switch, which enable it installed on the DIN rail of a distribution box.
Wi-Fi Connected.
Use your existing home Wi-Fi network to achieve wireless control.
Highly Compatibility.
This smart switch module is compatible with existing normal switches.
Time Schedule.
Create custom schedules based on your agenda or follow the sunrise or sunset.
Mobile App Remote Control.
Turn a wide range of appliances ON-OFF directly from mobile App, no matter where you are. Forgot to turn off your home lights or air conditioning or other appliances because you were in a hurry? Now you can do it on your way to the office or the airport. Just take out your phone and slightly tap on the screen.
Hand-free Voice Control.
Netplus smart devices work with amazon Alexa/Echo/Dot, Google Home, Yandex, etc. After pairing with them, you can control your home appliances with simple voice commands, no need to touch a switch or open the app, just ask Alexa to proceed commands.
Device Sharing.
Add your family members in the sharing list, then they are capable of controlling the same devices.
2-way Control for Stairs Light.
Netplus smart relay or dimmer modules have more potential functions to surprise you. Connect it with a pair of 2-way switches to turn on/off the staircase lights.
Smart Scenarios.
Create smart scenarios by linking smart relays with other Netplus smart devices. Set this smart module to activate custom scenes based on temperature, humidity, light, or various occurrences. Use Netplus gate smart module to open your swing gate when you drive home, then smart switch turn on lights, air conditioning during the period of parking car.
Features:
- Input: AC100-240V 50/60Hz
- Output: AC100-240V 50/60Hz
- Load: max. 16A (3680W, 300W for LED)
- Channels: 1 channel
- Power Measurement: Yes
- Management App: SmartLife or Tuya Smart App
- Operation Range: < 200 meters
- Standby Power: < 0.5W
- Overload Protection: Yes
- Neutral Wire Required: Yes
- Connectivity Protocol: Wi-Fi 2.4GHz & Bluetooth
- Wireless Standard: IEEE 802.11 b/g/n
- Antenna: A ceramic antenna integrated on PCB board
- Security Module: WPA / WPA2
- Encryption Type: WEP / TKIP / AES
- Operation Temperature: -10ºC – +40ºC
- Case Temperature: Tc: +80ºC (Max.)
- Working Humidity: 5% – 95% RH, non-condensing
- IP Rating: IP20 for indoor use
