Manufacturer: NodON

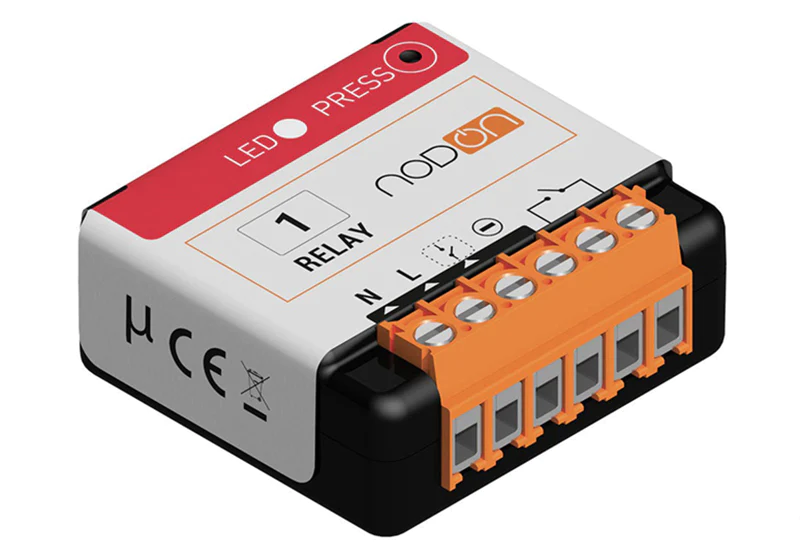

NodOn Zigbee 1-Channel 16A Relay Switch

€39.89 incl tax

The NodOn Zigbee 1-Channel 16A Relay Switch SIN-4-1-20 enables users to control their garage door, gate, heater, power socket, boiler or other. It is easy to install on existing equipment to connect it and make it remotely controllable - requires a compatible home automation system - with a smartphone, by voice or automatically.

SKU: SIN-4-1-20

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Qty:

Overview
Specifications
Reviews
Contact Us

Features:

Zigbee 1-channel 16A Relay Switch
Compatible with lots of Zigbee ecosystems: Zigbee 3.0, this relay switch is 100% Zigbee interoperable
High switching capacity: 3680W for controlling individual devices or collective (water heater, boiler...)
Potential-free output: 1
Energy measurement: No
Ultra low profile: Installation in electrical boxes from >30mm
Installation without DIY work: On the existing controller or at the electrical panel (DIN Rail Box needed)
Update Over-The-Air (OTA): The relay switch is quick to update thanks to the OTA function.
Updates can be carried out via a compatible home automation system.

Technical Specifications:

Power supply: 230V AC ~ 50Hz
Switching capabilities: 230V AC – 16A
Consumption: <1W
Maximum engine power: 3680W - Integrated zero crossing
RF protocol: Zigbee 3.0
Wireless frequency range: 2.4 GHz
RF power max: +10dBm
Range: up to 30m indoors
Operational temperature: -20° C to 60° C
Protection rating: IP 20
Device ID Type: On/Off Output (0x0002)

Products specifications

Technology	ZigBee
Function	Relay / on-off
