Manufacturer: NodON

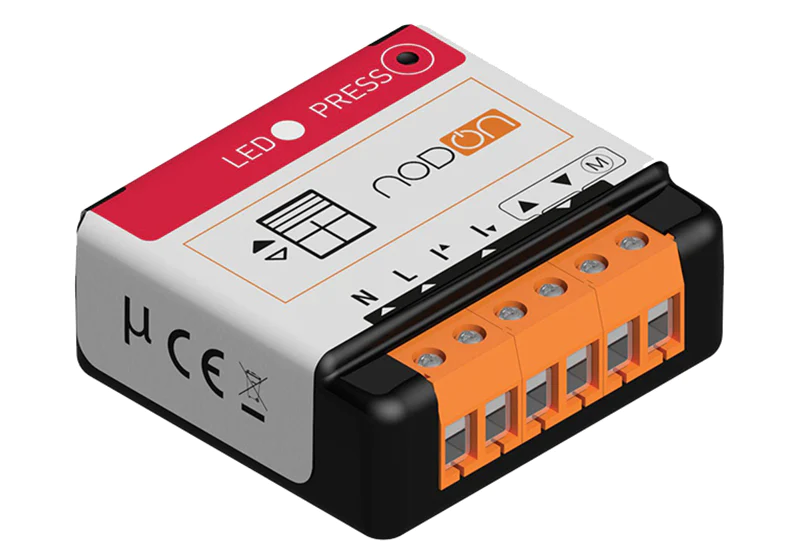

NodOn Zigbee Roller Shutter

€44.90 incl tax

The NodOn Zigbee Roller Shutter SIN-4-RS-20 turns a motorized roller shutter, awning or rolling sunshades into a remotely controlled one with hasslefree installation, no need for DIY work. It can be remotely controlled via smartphone. Automatic control is also possible through a compatible home automation gateway. Please Note: Requires a Zigbee compatible home automation system.

SKU: SIN-4-RS-20

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Qty:

Overview
Specifications
Reviews
Contact Us

Features:

Zigbee Roller Shutter
Compatible with lots of Zigbee ecosystems: Zigbee 3.0, this relay switch is 100% Zigbee interoperable
Auto calibration: No adjustments are needed, the Relay Switch will do an automatic self-calibration on the equipment.
Ultra low profile: Installation in electrical boxes from >30mm
Installation without DIY work: On the existing controller or at the electrical panel (DIN Rail Box needed)
Update Over-The-Air (OTA): The relay switch is quick to update thanks to the OTA function.
Updates can be carried out via a compatible home automation system.

Technical Specifications:

Power supply: 230V AC ~ 50Hz
Switching capabilities: 230V AC – 3A
Consumption: <1W
Maximum engine power: 280W Max - 60 Nm Max- Integrated zero crossing
RF protocol: Zigbee 3.0
Wireless frequency range: 2.4 GHz
RF power max: +10dBm
Range: up to 40m indoors
Operational temperature: -20°C to 60°C
Protection rating: IP 20
Rolling sunshades compatible
Device ID Type: Window Covering Device (0x0202)

Products specifications

Technology	ZigBee
Function	Roller shutter
