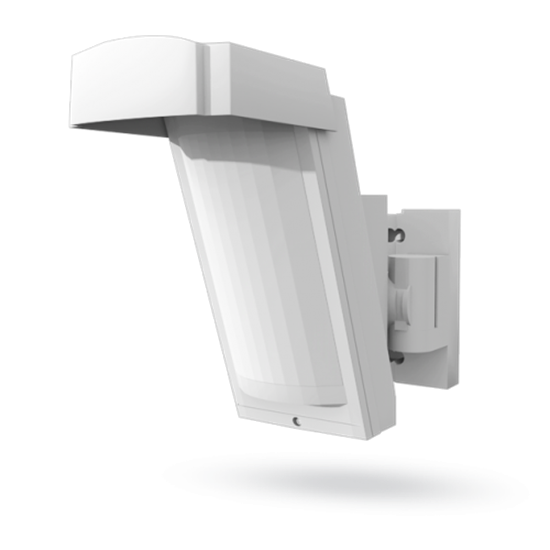

outdoor wireless PIR detector (dual zone)

€479.70 incl tax

The JA-88P wireless PIR detector is designed to indicate disturbance outside the building caused by human bodies. It is a two-zone outdoor detector by Optex supplemented with a transmitter compatible with JA-80 OASiS systems. Both the detector and the transmitter are powered by three lithium batteries. Both devices have a common power supply and the low battery signal is transmitted to an ESS control panel as a standard. The detector is equipped with two TAMPER contacts (front and rear), which immediately report opening of the detector cover or its possible tearing from the place of installation. The detector regularly performs automatic tests and reports its status via control transmissions to the system.

SKU: JA-88P

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Availability: EOL product - confirm stock availability before ordering

Qty:

Overview
Reviews
Contact Us

TechInfo:

Power supply 3x type LS(T)14500 (AA 3.6 V 2000 mAh) lithium batteries
Average battery lifetime approx. 3 years (with 120 s energy saving mode)
Operating frequency 868 MHz
Range – distance from the control panel up to 300 m
Detection characteristics 12 m / 85° ; 94 segments
Recommended installation height: 2.5 – 3.0 m above ground level
Object motion speed 0.3 – 1.5 metres per sec
Battery saving timer adjustable 5 s or 120 s
Detector cover conformance IP55
Max. relative humidity of the environment 95% Weight 620 g
Environment according to EN 50131-1 IV
Operating temperature range -20°C to +60°C
Security rating EN 50131-1, EN 50131-2-2, EN 50131-5-3 Grade 2
Can be operated according to CTU VO-R/10/06.2009-9
