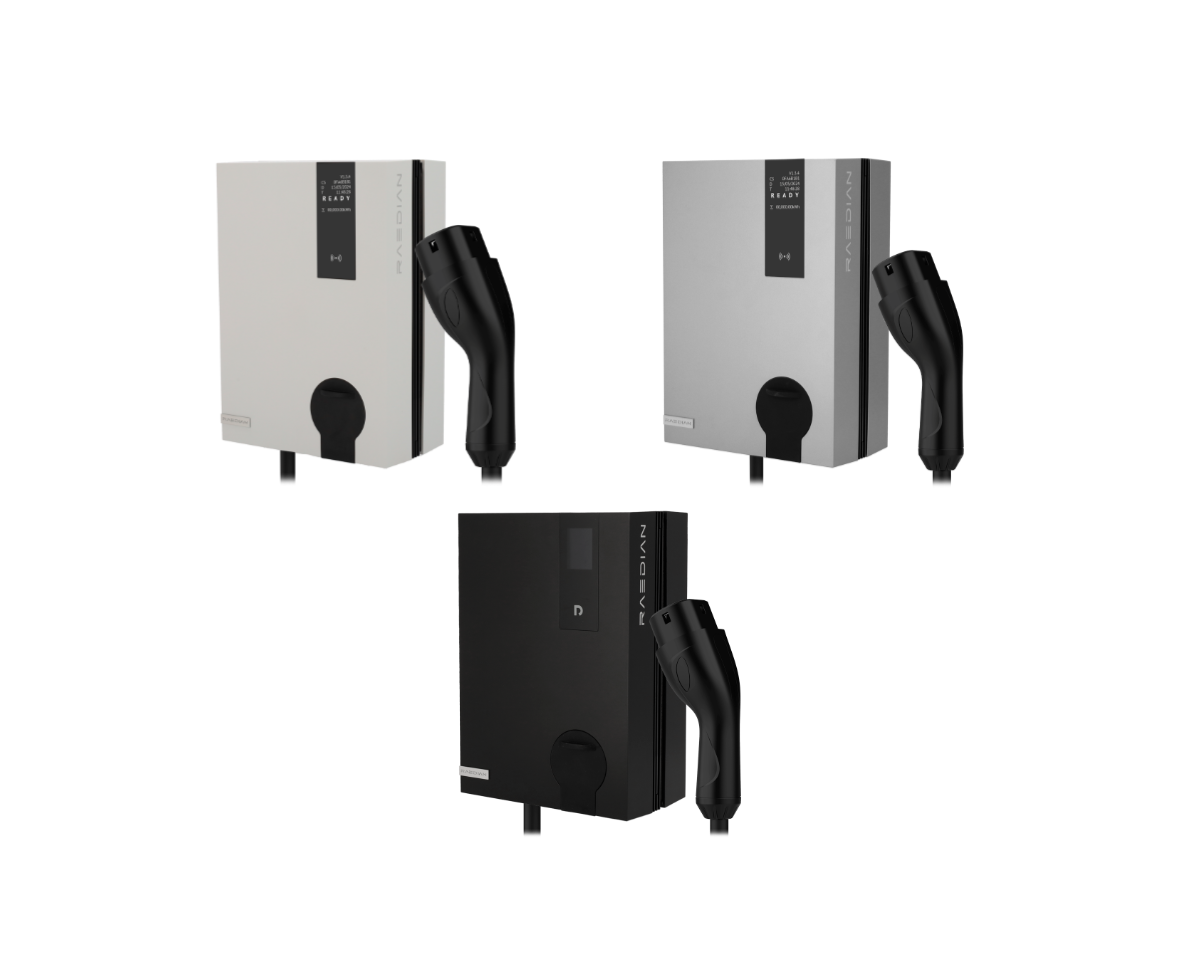

The Raedian NEO 7kW Wallbox is a high-performance single-phase charging station designed to offer a safe, fast, and incredibly intuitive charging experience in residential or light commercial environments. Capable of delivering up to 7.4kW of power, it ensures your electric vehicle is always ready to go.
To guarantee maximum installation flexibility, this model allows you to choose the Output Format that best suits your space: the S (Socket) version, ideal for those who prefer to use a detachable cable; the C5 (5-meter Tethered Cable) version; or the T75 (7.5-meter Tethered Cable) version, which provides greater reach in large garages.
The minimalist and robust design conceals cutting-edge technology. Through the Raedian mobile app, connected via Wi-Fi or Bluetooth (BLE), you have full control over charging sessions, allowing you to schedule times to take advantage of off-peak tariffs and view consumption history. The equipment is highly durable, with an IP55 rating (protection against water and dust) and IK10 (maximum impact resistance), and includes integrated residual current protection (DC 6mA), eliminating the need for expensive additional protections.
Technical Specifications:
-
Brand: Raedian
-
Series: NEO
-
Maximum Power: 7.4 kW
-
Input/Output Voltage: 230V AC (Single-Phase)
-
Maximum Current: 32A
-
Output Format: Socket (Untethered) / 5m Cable / 7.5m Cable
-
Connectivity: Wi-Fi and Bluetooth (BLE)
-
Authentication: Mobile App, RFID Card, Plug & Play
-
Protection Rating: IP55 (Outdoor/Indoor)
-
Impact Resistance: IK10
-
Leakage Protection: Integrated DC 6mA (IEC 62955)
-
Mounting: Wall-mounted (Wallbox)
