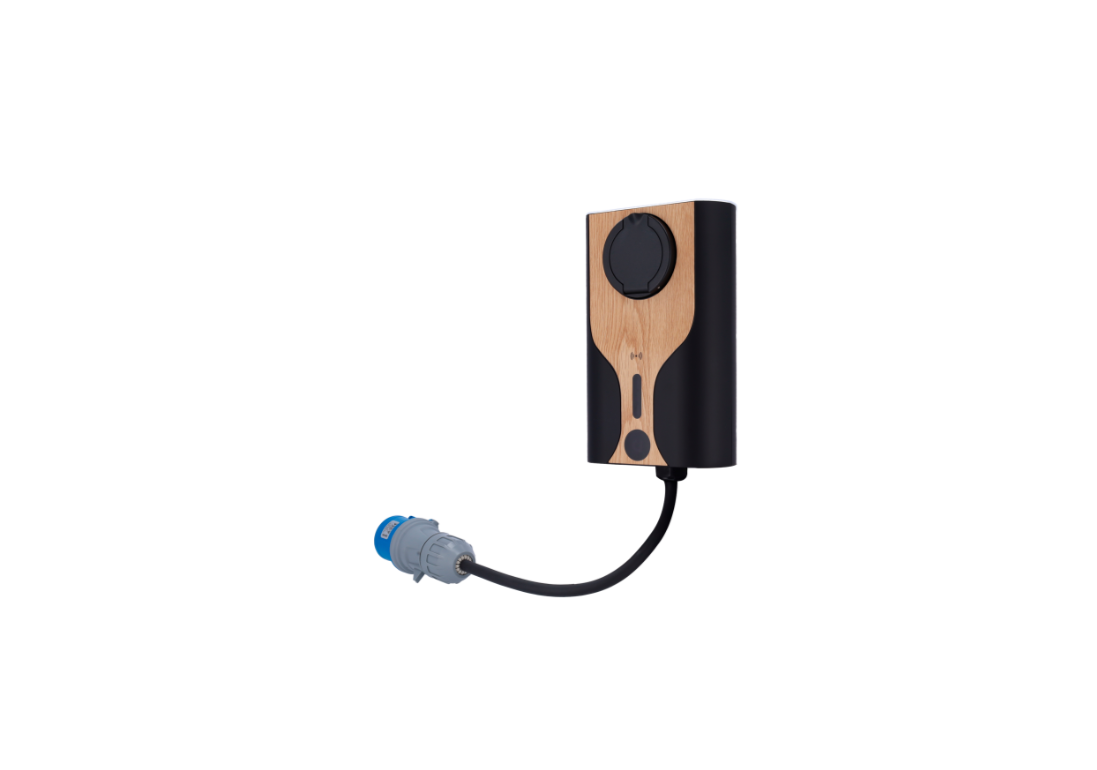

Raedian NORA 7kW Single-Phase EV Charger

The Raedian NORA 7kW (C1) series stands out as the ideal single-phase charging solution for residential environments and spaces where efficiency and compact design are a priority. Capable of delivering up to 7.4kW of power, this equipment optimizes your electric vehicle's charging time using a standard home grid.

The product is available in two commercial variations adapted to your needs: the Socket (RET) version for those who prefer to use their own charging cable flexibly, and the base EU Version (NCB7). Both models boast built-in intelligence, allowing full control through a dedicated mobile app. With it, you can schedule charging sessions to take advantage of cheaper off-peak electricity tariffs, monitor real-time consumption, and manage access.

Safety and durability are guaranteed by a highly resistant enclosure, featuring IP55 certification (strict protection against dust and water jets) and IK10 (maximum impact resistance), making it suitable for both outdoor and indoor installations. It also includes residual current protection (integrated 6mA DC).

Technical Specifications:

• Brand: Raedian

• Series: NORA

• Maximum Power: 7.4 kW

• Input/Output Voltage: 230V AC (Single-Phase) ± 10%

• Maximum Current: 32A

• Connection Format: Type 2 Socket / No Cable

• Connectivity: Wi-Fi and Bluetooth (BLE)

• Authentication: Plug & Play, Mobile App, RFID

• Protection Rating: IP55 (Water/Dust) / IK10 (Impact)

• Leakage Protection: Integrated DC 6mA (IEC 62955)

• Mounting: Wall-mounted (Wallbox) or Pedestal
