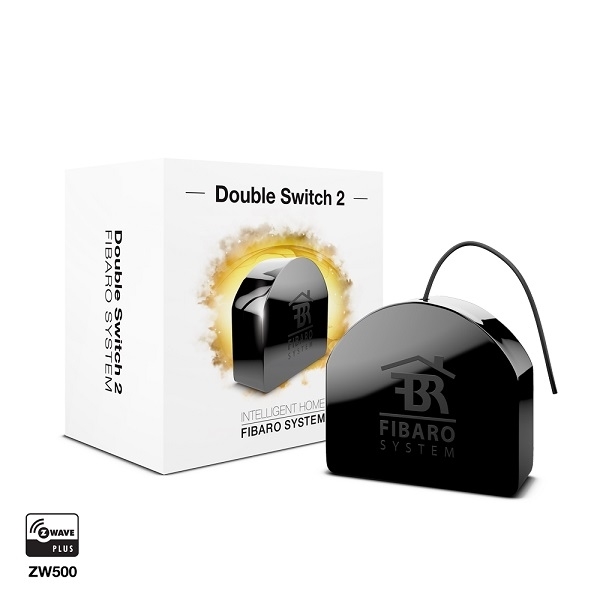

Double Switch 2 - Relay Insert 2 * 1.5 KW Z-Wave Plus

Features:

• Compatible with any Z-Wave or Z-Wave+ Controller;
• Supports protected mode (Z-Wave network security mode) with AES-128 encryption;
• Advanced microprocessor control;
• Active power and energy metering functionality;
• Works with various types of switches – momentary, toggle, three-way, etc;
• To be installed in wall switch boxes of dimensions allowing for installation, conforming to provisions of applicable regulations;
• Built-in scene activation mechanism;
• Configuration menu with a diode;
• 1 to 3 presses and holding the key pressed down can be mapped to four different actions;
• Very accurate energy measurement +/- 1 % for power above 5W;
• Z-Wave network coverage tester;
• Allows software updates;
• Recommended to control resistive and incandescent loads;

TechInfo:

• Power supply: 100-240V~ 50/60 Hz;
• Rated Current (IEC standards): 6.5A per channel, 10A overall (resistive loads);
• Operating temperature: 0-35°C;
• Overcurrent protection: required external 10A circuit breaker;
• Radio protocol: Z-Wave (500 series chip);
• Radio signal power: up to 1mW;
• Radio frequency: 868.4 or 869.8 MHz EU;
• Range: up to 50m outdoors, up to 40m indoors;
• Comply with EU directives: EMC 2014/30/EU, R&TTE 1999/5/EC, RoHS 2011/65/EU, LVD 2014/35/EU;
• Dimensions (L x W x H): 2.5 x 38.25 x 20.3 mm;
