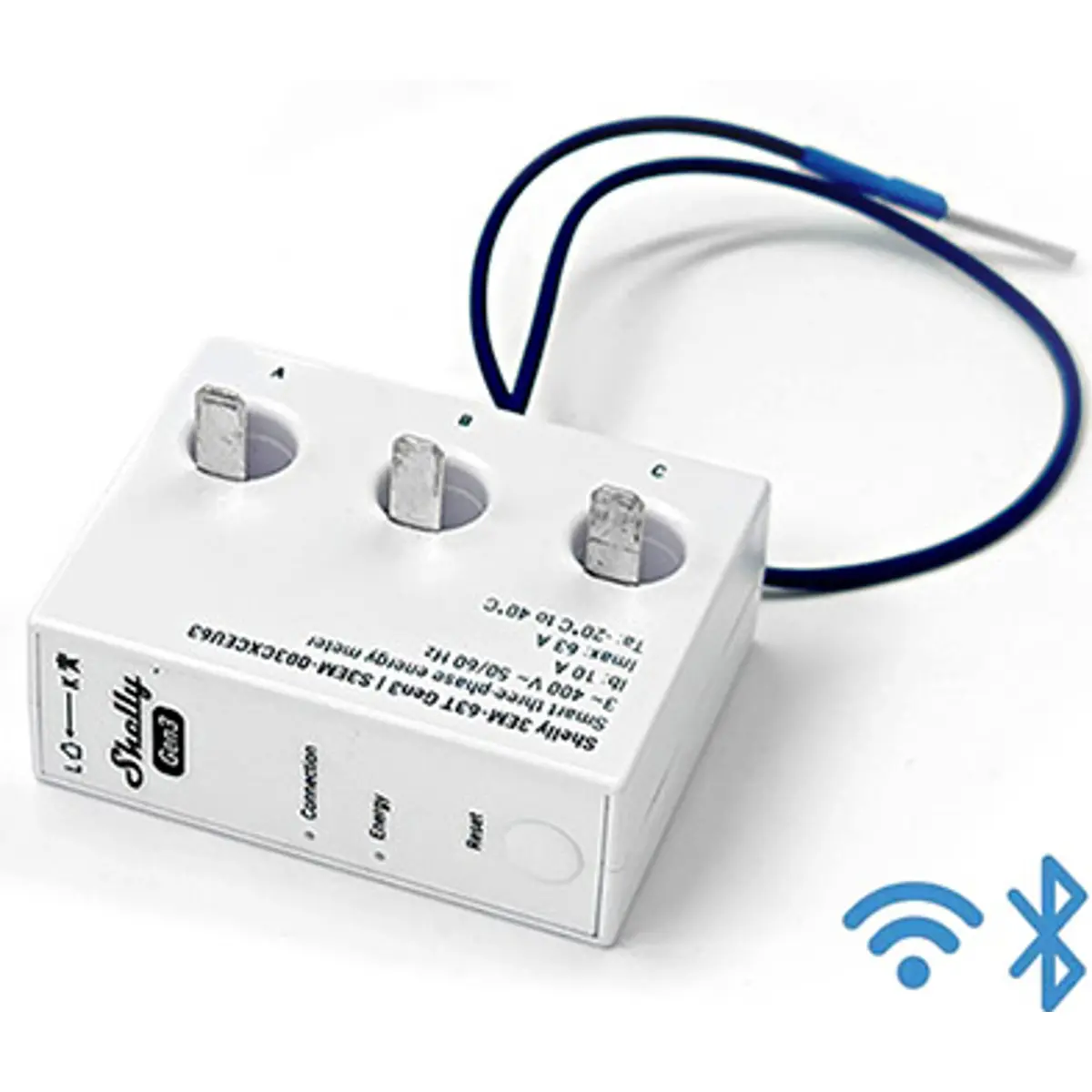

Shelly 3EM-63T Gen 3

The Shelly 3EM 63T Gen 3 is the most advanced energy monitoring solution for three-phase systems or multiple single-phase circuits. Thanks to its new 3rd generation architecture, this device offers native Matter support, ensuring secure and universal local integration with all major smart home platforms.

This device allows for independent measurement of voltage, current, and power factor for each phase with Class B accuracy. It is ideal for solar surplus management and industrial or residential energy tracking. The powerful Gen 3 processor enables advanced scripting and intelligent automations based on power thresholds.

• Matter Connectivity: Direct local integration with Apple Home, Google Home, and Alexa.

• Bidirectional Monitoring: Tracks both grid energy consumption and solar energy export.

• Bluetooth Gateway: Acts as a bridge for the entire Shelly BLU sensor line.

• Contactor Output: Features a relay output for automatic external load control.

Technical Specifications:

• Power Supply: 110 - 240V AC, 50/60Hz

• Measurement Channels: 3 independent channels

• Current Transformers: 3x 63A (63T Series)

• Accuracy: Class B (IEC 62053-21)

• Processor: Gen 3 Series (8MB Flash)

• Protocols: Wi-Fi 802.11 b/g/n, Bluetooth 4.2, Matter

• Control Output: 1x Relay (dry contact, max 10A)

• Dimensions: 37 x 42 x 16 mm
