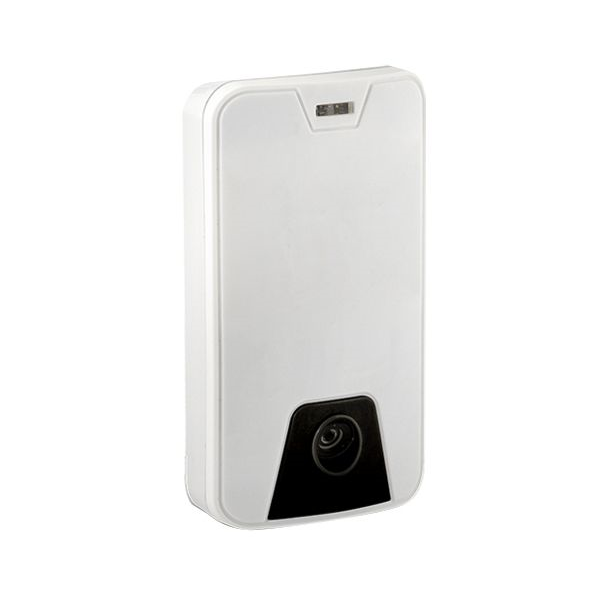

Wireless 2-Way PIR / PET Camera Detector

Features:

• 14m coverage (wide angle) with 90°field-of-view
• Installation height 2.4m
• VGA or QVGA camera resolution
• Discreet IR flash allows imaging in complete darkness, up to 10m (33’)
• Sequence of images upon event, configurable number and fps
• During disarm, events are ignored to save battery and for privacy
• On-demand images initiated from authorized Smartphone or web browser
• Two RF channels with separate antennas: One for control, second channel forimage transmission
• Images stored on detector until transmission to panel complete
• 2 long-life lithium batteries for extended battery life
• Frequency: 868Mhz or 433Mhz
• PET Immunity option (45Kg animals)

TechInfo: Electrical

• Battery Type: 2 x CR 123, 3V Lithium
• Battery Life: 2 batteries – 3 year typical lifetime
• Current Consumption: 58 µA standby; 200 mA max. peak at capture with flash
• Supervision Transmission: 10 minutes
• RF transmitting frequencies: 868MHz, 433MHz - models EL5855 and EL5855PI

Optical

• Filtering: White Light Protection
• Pet friendly: Up to a 45 kg animal immunity (pet model)

Physical

• Size (L x W x D): 120 x 65 x 35 mm (4.7 x 2.6 x 1.8 in)
• Weight: 100 grams (3.52 oz.)
• Environmental RF Immunity: According to EN50130-4
• Operating Temperature: -10ºC a 55ºC (14ºF a 140ºF)
• Storage Temperature: -20ºC a 60ºC (-4ºF a 140ºF)

Camera

• Type: CMOS digital image sensor
• Lux: 0 Lux (total darkness)
• View Angle: H 90º V 73º
