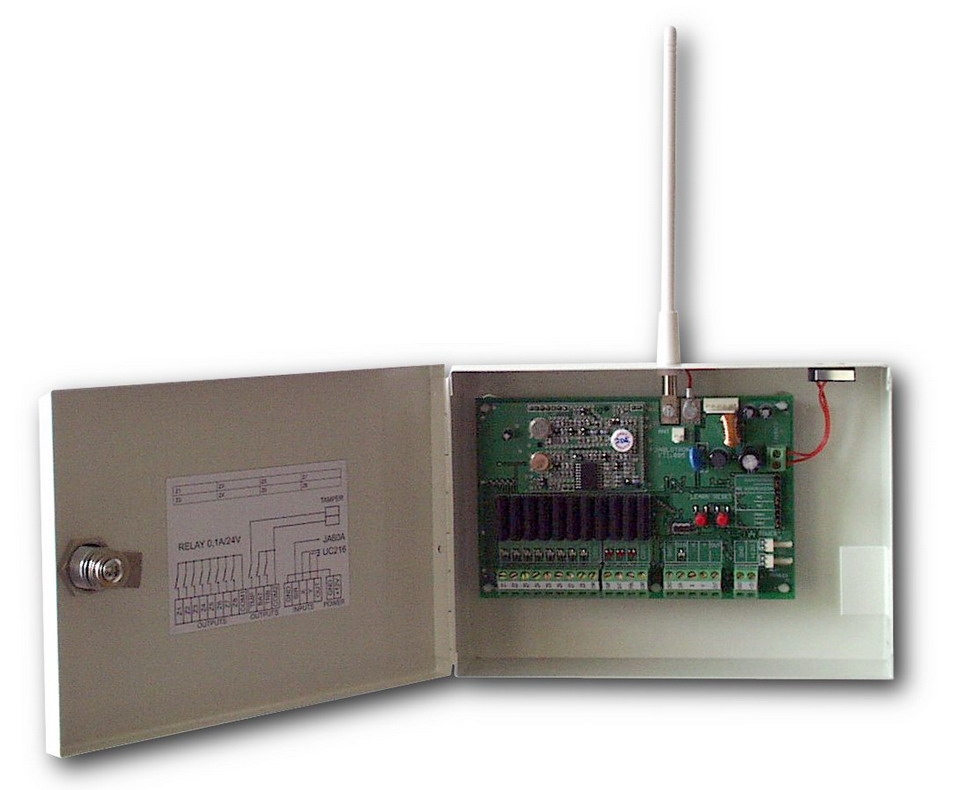

The UC-280 is an 8-zone interface linking JA-60 wireless detectors with hard-wired security control panels.

SKU: UC-280

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Availability: EOL product - confirm stock availability before ordering

Qty:

Overview
Reviews
Contact Us

Features: It can also send triggering signals to a JA-60A wireless outdoor siren and/or UC-216 and UC-222 universal receivers.
Additionally, it can receive signals from Jablotron RC-xx remote controls. If necessary, UC-282 expander modules can be used to increase the number of zones up to 40.

TechInfo:

Power: 12 V DC (10.5 V - 16.0 V);
Power consumption: typ. 50 mA (all relays off), max. 150 mA;
Zone outputs Z1-Z8: 8 relays 50 mA / 50 V with COM1 common terminal;
Tamper, fault, battery outputs: 3 relays 50 mA / 50 V with COM2 common terminal;
X, Y and Siren inputs: activated when switched to GND (filter 0.2 sec., 3 V DC triggering level);
Operating frequency: 433.9MHz;
Working range with JA-60: 100m (open area);
Working range with RC: 30 m (open area);
Working environment: indoor use (class II, EN 50131-1);
Operating temperatures: -10°C to +70°C;
Operating humidity: max. 90%;
Dimensions: 188 x 135 x 40 mm;
Weight: 800 g;
