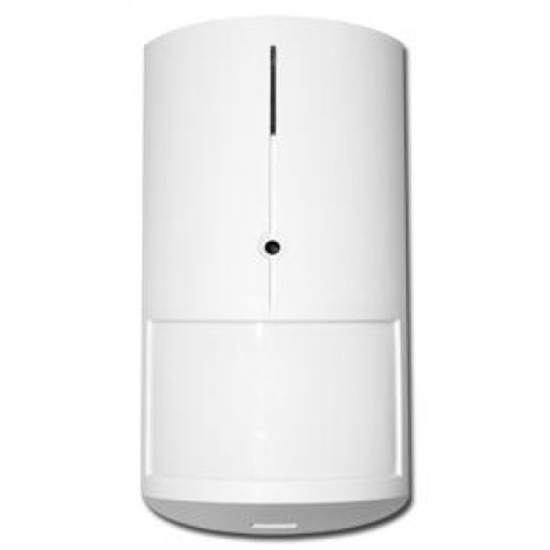

Picture of Wireless Motion/Glass-break Detector

Wireless Motion/Glass-break Detector

Be the first to review this product

€119.00 excl tax

The JA-80PB consists of two independent detectors which occupy two separate enrollment addresses in the control panel. The motion detector uses a PIR sensor. The glass-break detector uses the analysis of air pressure variations combined with the characteristic sound of glass breaking. The product is designed for internal use in buildings. The battery-powered detector communicates via OASIS radio protocol.

SKU: JA-80PB

Ship to

*

*

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Availability: EOL product - confirm stock availability before ordering

Qty:

Overview
Reviews
Contact Us

TechInfo:

Voltage of PIR sensor: Lithium battery type CR14500 (AA 3.6V);
Voltage of GBS sensor: Lithium battery type LST14250 (1/2AA 3.6V);
Typical battery lifetime: approx. 3 years (PIR sensor sleep time 5 min.);
Communication band: 868 MHz, Oasis protocol;
Communication range: approx. 300m (open area);
Recommended installation height: 2 - 2.5 m above floor level;
PIR sensor detection angle/detection range: 120° / 12 m (with basic lens);
Glass-break detection range: 9m (glass min. 60 x 60cm);
Operational environment according to EN 50131-1: II. internal space;
Operational temperature range: -10 to +40°C;
Dimensions: 110 x 60 x 55 mm;
EN 50131-1, CLC/TS 50131-2-2, EN 50131-5-3 classification: grade 2;
Complies with: ETSI EN 300220, EN 50130-4,EN 55022, EN 60950-1;
Can be operated according to ERC REC 70-03;
