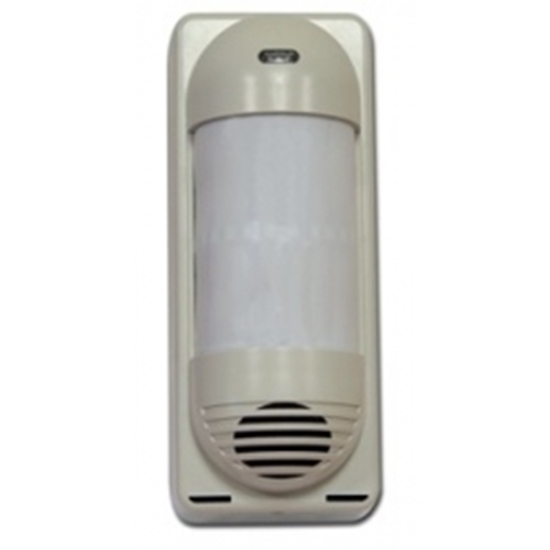

Wireless outdoor PIR detector

Features: Both the PIR sensor and the transmitter are powered by a lithium battery. Sharing the power source allows low voltage reports to be transmitted to the control panel in the standard way.
The detector is equipped with two tamper sensors (front and back) capable of signalling that the detector’s cover has been opened or that the detector has been torn off its position. Self testing is performed automatically on a regular basis including reporting detector status to the control panel. These properties make the JA-89P a standard component of Jablotron’s OASiS system.

TechInfo:

• Voltage: Lithium battery type LS(T)14500 (3,6V AA);
• Typical battery lifetime: approx. 3 years (120 sec sleep mode);
• Communication band: 868 MHz;
• Communication range: approx. 300 m (open area);
• Coverage: 10 m / 90°; 14 segments;
• Installation height: 0.8 – 1.2 m;
• Detected speeds: 0.3 – 1.5 ms-1;
• Battery saving timer: either 5 or 120 seconds;
• LED indicator: only in test mode;
• Operational environment class: IV, according to EN 50131-1;
• Security grade: 2, according to EN 50131-1;
• Operational temperature range: -20°C to +50°C;
• Enclosure: IP54;
• Maximum relative humidity: 95%;
• Dimensions: 198 x 80 x 108 mm;
• Can be operated according to: ERC REC 70-03;
• Security grade: 2, according to EN 50131-1, CLCITS 50131-2-2, EN 50131-5-3;
