Manufacturer: Philio

3 in 1 Sensor (illumination, temperature, door/window)

€46.99 incl tax

The Z-Wave 3 in 1 sensor (PHI_PSM01) is designed with three detection sensors:

Door/windows;
Temperature sensor;
Luminosity sensor.

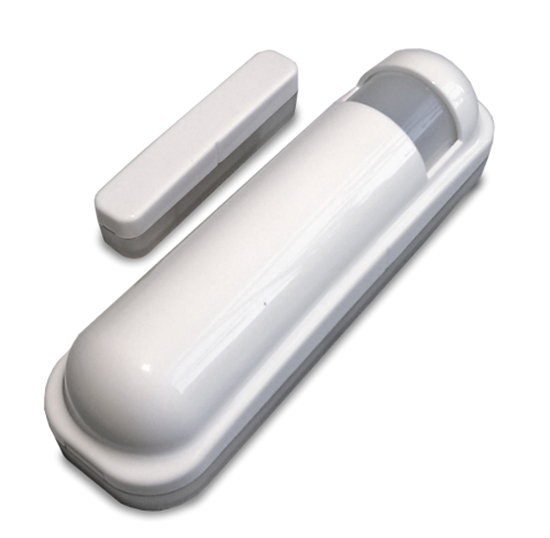

The sensor consists of two parts; a Detector and a Magnet. They are designed to be fitted to doors or windows with the Magnet mounted on the opening part and the Detector mounted on the fixed frame. Opening the protected door/window will remove the magnetic field, trigger the detector and generate an alarm condition, (if the system is armed). The sensor can also applied to automatic light control, one scenario is to get the illumination lux level from built in illumination sensors and send a signal to Z-wave switch to turn the light on once we open the door when the room is dark. Every time when Door/Window trig, the sensor will also send temperature and illumination value as well. Also the temperature will send out the value when temperature changes. Note: The illumination sensor yet does not work with Fibaro Homecenter 2 and Zipato Zipabox.

SKU: ZWPHI PST02-1C

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Availability: In stock

Qty:

Overview
Reviews
Contact Us

Features:

Adopt newest Z-wave 400series chip, support multichannel operation and higher data rate (9.6/40/100kbps);
Higher output power (+2.5dBm output power as compared to -2.5dBm 300 series Z-wave module) to enhance the communication range;
Built in illumination sensor;
Tamper protection;
Low battery indication.

TechInfo:

Input voltag: 3V CR123A 1500mAh;
Battery life: >3,5 years @trigger 14 times per day, >2,5 years @trigger 260 times per day;
Standby current: 30?A;
Operating current: 37mA;
Low battery voltage: 2.6V;
Frequency: 868.42 MHZ (EU);
Range: 40m indoor, 100m outdoor;
Operation Temperature: 0~40°C;
Humidity: 85%RH max;
Weight 52g;
Magnetic gap: 28 mm (Open?Close), 30 mm (Close?Open);
Illumination range: 0 ~ 500 lx;
Dimension (WxHxD): Detector 28x96x23mm, magnet: 10x50x12mm.
