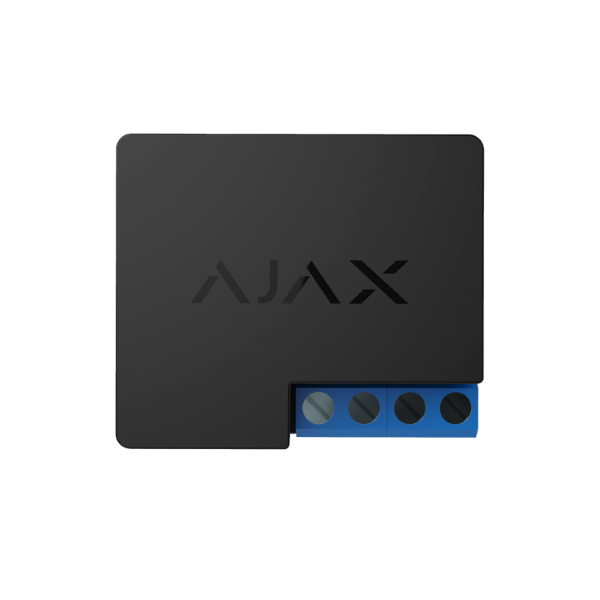

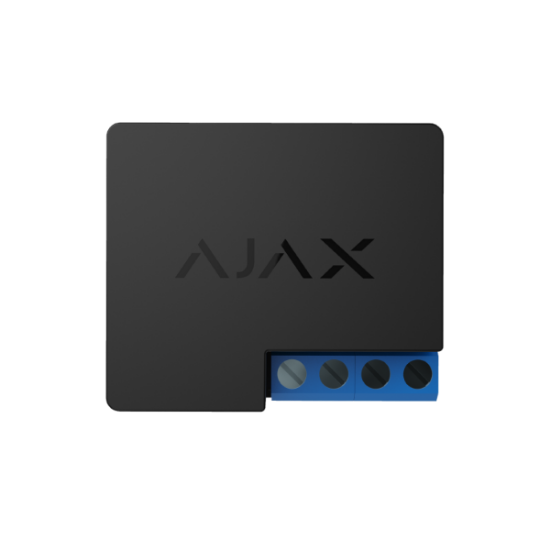

AJAX WallSwitch

Relay

For 230 V mains: max — 264 V, min — 161 V
For 110 V mains: max — 126 V, min — 77 V

200,000 switch-ons

13 A

Yes (13 A)

>65°C in the wall plate

Resistive load at 230 V — up to 3 kW
Resistive load at 110 V — up to 1.5 kW

Available

Current, voltage, power consumption

0.15 s

110−230 V±10% 50/60 Hz

Communication range with central unit — up to 1,000 m in an open space
Two-way communication between devices
Operating frequencies — 868.0-868.6 MHz
Self-adjusting RF output power — up to 25 mW
Block encryption based on AES algorithm
Detector scanning period — 12−300 s

0°С to +64°С

Up to 75%

Protection against fraud
Jamming detection

IP20

+

39 х 33 х 18 mm

30 g

CE

Replacement and repair within 24 months of the date of sale.

WallSwitch
Installation set
User’s guide
