TECNOLOGÍA DE COMUNICACIÓN: Z- WAVE (serie 700)TECNOLOGÍA DE RED: Wi-Fi 2.4GHzCPU: ARM Cortex A7 de un solo núcleo 900 MHzMEMORIA RAM: 512 MBMEMORIA FLASH: eMMC de 4 GB

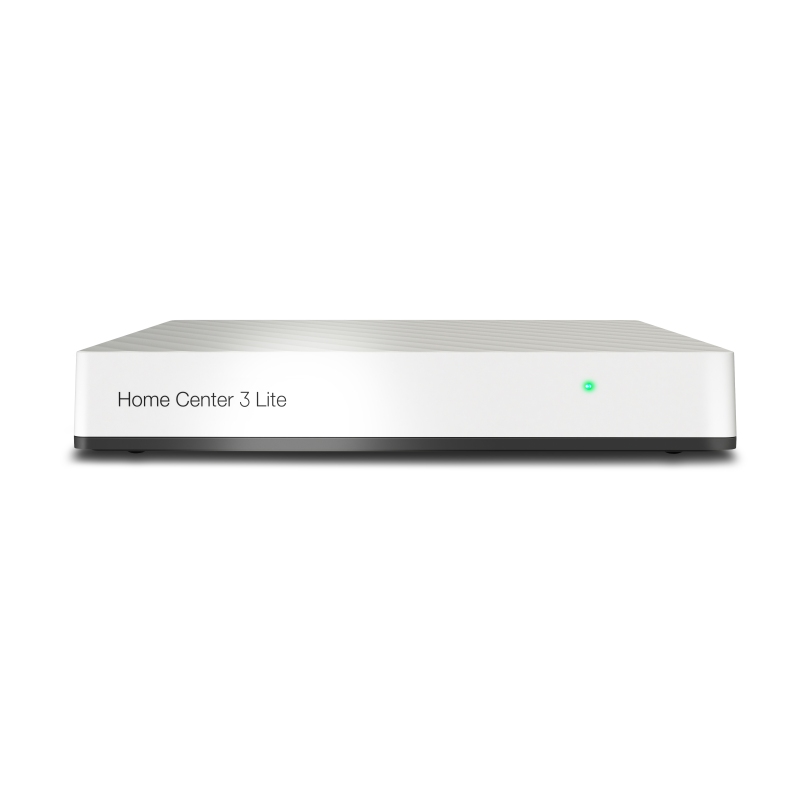

FIBARO HOME CENTER 3
APPLICATION
Versatile applications in building automation: houses, flats
Smaller houses (recommended up to 100 m2) and apartments
NUMBER OF SUPPORTED DEVICES
Up to 230 Z-Wave devices
Recommended up to 40 Z-Wave devices
COMMUNICATION TECHNOLOGIES
Z-Wave 500
Zigbee, BLE, NICE 433MHz / 868MHz
Z-Wave 700
NETWORK TECHNOLOGIES
Ethernet, Wi-Fi 2.4GHz / 5GHz
Wi-Fi 2.4GHz
CPU
Quad-Core ARM Cortex A53 1,2GHz
Single-Core ARM Cortex A7 900 MHz
RAM
2 GB
512 MB
FLASH MEMORY
8 GB eMMC
4 GB eMMC
POSSIBILITIES OF AUTOMATION
LUA, block scenes, panels, schedules
MAXIMUM NUMBER OF SCENES
Unlimited
Up to 20 scenes
IP CAMERAS SUPPORT
1 IP camera MJPG
PLUGINS AND QUICK APPS SUPORT
5 plugins and 10 quick apps
MIGRATION MECHANISM
Yes, from HCL, HC2, HC3L
No
OPERATING IN CONNECTED GATEWAYS MODE
MASTER & SLAVE mode
Only SLAVE mode (Available from next software versions)
The Fibaro Flood Sensor will alert you of a threatening flood or a rapid temperature rise or drop and has a wide variety of additional functions. Thanks to its flexible gold telescopic probes the device can even work on uneven surfaces. The Flood Sensor has a built in alarm siren which will help you to react quickly in case of a flood, rapid temperature change or the attempt to tamper with it. Aside from the alarm siren, the device can alert you of a threat using colour displays from the built in RGB diode. In addition to this a tilt sensor will detect tilt and movement over 15 degrees and send out a report to the main controller. The built in temperature sensor can not only be used to serve as a fire alarm sensor, it may also be used to manage an in-floor heating system.
The Input terminal allows you to connect an external probe and install the sensor in any location. The Output terminal allows for a connection to an alarm system.
The Sensor will work on 12 or 24 VDC or battery.
