Manufacturer: Zipato

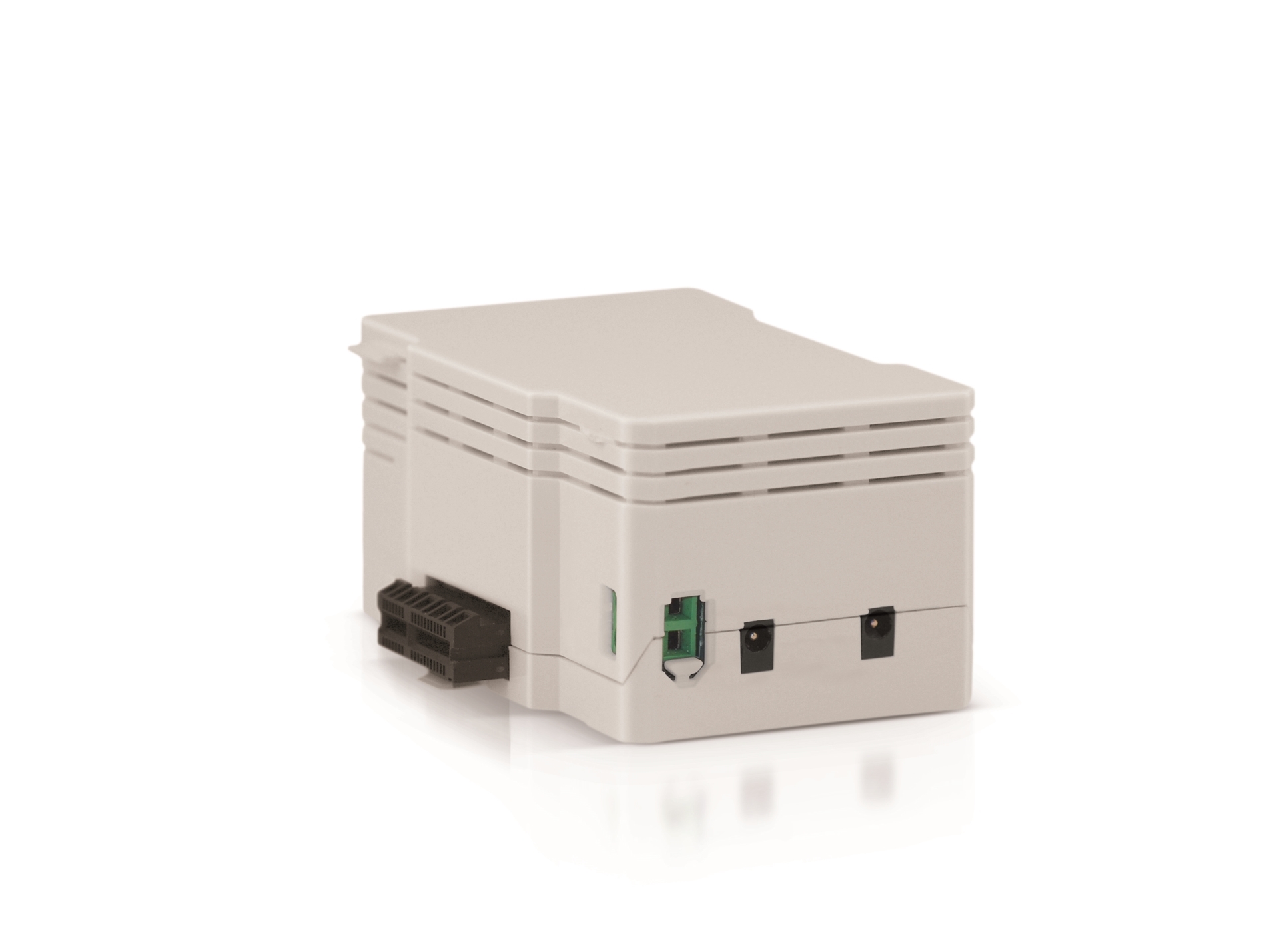

Zipato - Power Expansion Module

€149.00 incl tax

Monitor the energy consumption of up to four channels with the Zipato Zipabox Power Module. This add-on module snaps into a Zipato expansion slot. Once connected, the Power Module instantaneously measures voltage, current, and power values for each channel and sends real-time data to your Zipato web portal. Using this information, you can then create energy-saving rules in the Zipato Rule Creator.

To perform the measurement is necessary to use the current clamps ZWZIP_AMPCLAMP35(purchased separately).

SKU: ZBM.Power

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Qty:

Overview
Reviews
Contact Us

Features:

Measures voltage, current and power;
Sends real-time data to Zipato web portal;
Monitors up to four channels;
Can be mounted on a DIN rail;

TechInfo:

Power Supply: Powered by Zipabox;
Input: 90-265 VAC, 50-60 Hz;
Output: 12VDC, 1.5A (tied to internal Zipabox power bus);
Efficiency: High active mode efficiency (> 85 percent);
EMI: Complies with standards;
Dimensions: 86(L) x 55(W) x 48(H) mm;
Weight: 155g;
Color: White;
Temperature Range:
- Operating: 0 to 40° C (32 to 104° F);
- Storage: -25 to 70° C (-13 to 158° F);
Humidity: 5 to 95 percent non-condensing;
Regulatory Compliance (pending)
- Safety: UL;
- EMC: FCC, CE;
- RoHS;

Warning:

Complemented with current clamps ZWZIP_AMPCLAMP35.
