Manufacturer: Shelly - Allterco Robotics

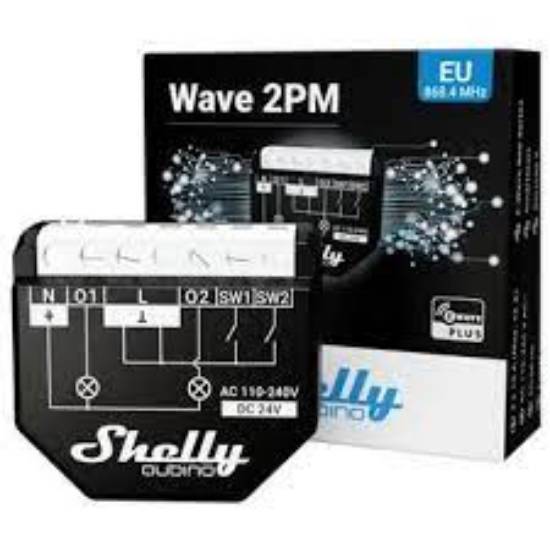

Shelly Qubino Wave 2PM

€38.89 incl tax

The Shelly Z-Wave 2PM Relay 16A 2 channel turns ordinary two-pole wall switch into a smart switch. It enables remote control of two electrical devices, such as lights, ceiling fans, IR panels, and R heaters.
It switches (on/off) two independent loads and measures their power consumption separately and in total. Connected devices can be controlled either via smartphone or tablet, according to schedules or scenes, etc. It is compatible with switches or push buttons.
A gateway (smart hub) is required for the configuration of the device.

SKU: ZWALR ZWE_W_2PM

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Qty:

Overview
Specifications
Reviews
Contact Us

Relay Z-Wave 2x 10A (16A total)
Measures power consumption of the connected device on each channel
Small size ensures the simplest installation behind every wall switch or wall socket
Extended wireless range: Up to 40m indoors
SmartStart for the automatic set-up.
OTA Firmwareupdate for over-the-air updates
S2 Security authenticated
Extremely low energy consumption: Less than 0.3W
Power supply: 110-240 V AC / 24 V DC +/-10%
Max. switching current AC: 10 A per channel, 16 A total, 18 A total peak
Max. switching voltage DC: 30 V
Max. switching current DC: 10 A
Overheating protection: Yes
Overload protection: Yes
Z-Wave S800
Ambient temperature: -20°C to 40°C
Humidity: 30% to 70% RH
Max. altitude: 2000 m

Products specifications

Technology	Z-Wave
Function	Relay / on-off
Product type	In wall

Write your own review

Only registered users can write reviews

Review title: *

Review text: *

Rating:

Bad
Excellent

Your name *

Your email *

Subject: *

Enquiry *

Relay Z-Wave 2x 10A (16A total)
Measures power consumption of the connected device on each channel
Small size ensures the simplest installation behind every wall switch or wall socket
Extended wireless range: Up to 40m indoors
SmartStart for the automatic set-up.
OTA Firmwareupdate for over-the-air updates
S2 Security authenticated
Extremely low energy consumption: Less than 0.3W
Power supply: 110-240 V AC / 24 V DC +/-10%
Max. switching current AC: 10 A per channel, 16 A total, 18 A total peak
Max. switching voltage DC: 30 V
Max. switching current DC: 10 A
Overheating protection: Yes
Overload protection: Yes
Z-Wave S800
Ambient temperature: -20°C to 40°C
Humidity: 30% to 70% RH
Max. altitude: 2000 m

Products specifications

Technology	Z-Wave
Function	Relay / on-off
Product type	In wall
