    Manufacturer: Philio

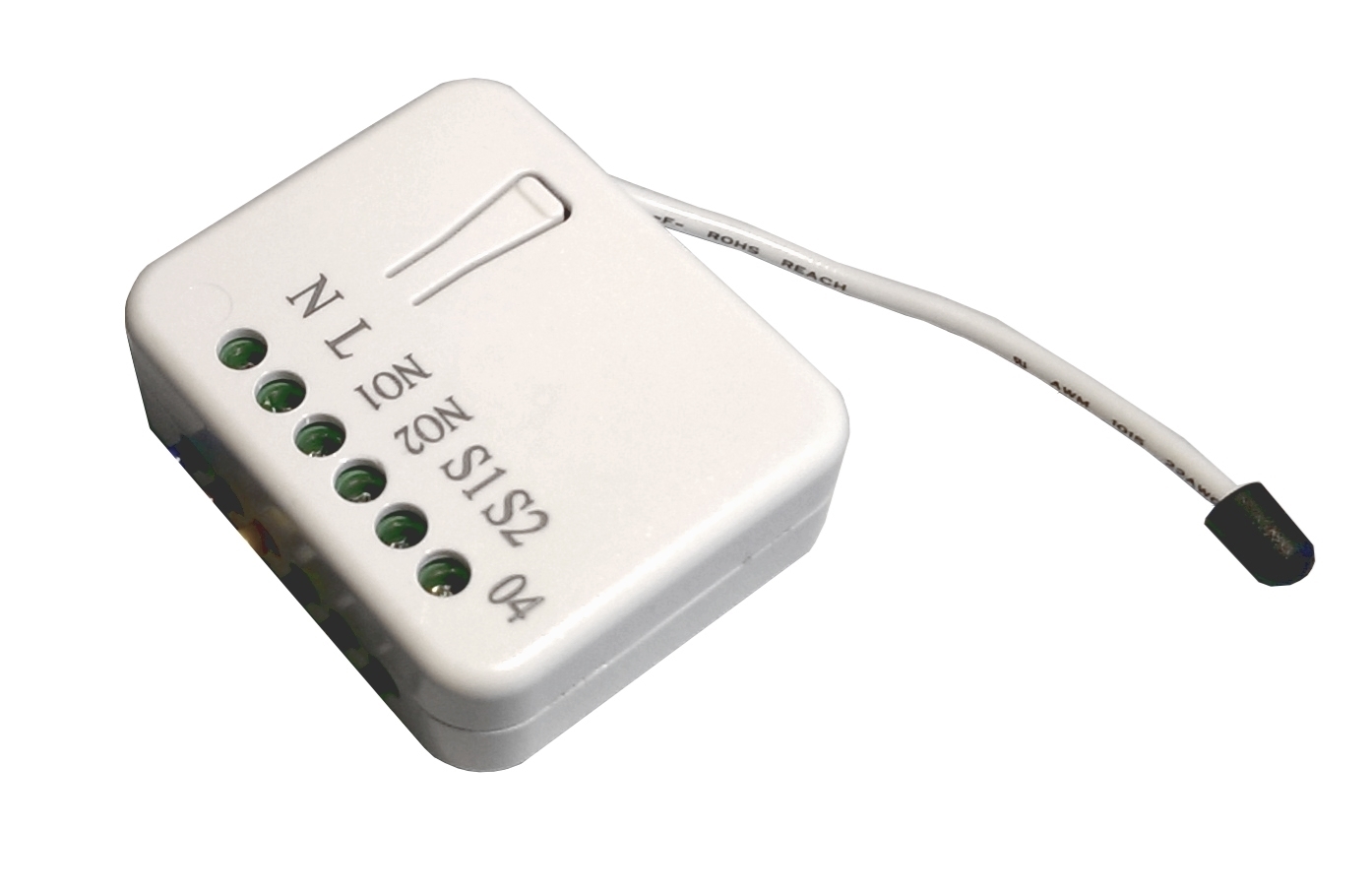

    Relay Insert 2 * 1.5 KW with energy metering

    €48.77 excl tax
    This in-wall dual relay switch module is a transceiver which is a Z-Wave Plus enabled device and is fully compatible with any Z-Wave enabled network.Mini size design let the module can easily hide itself into the wall box and that will be good for the house decoration. There are many kind of application by using the module to switch AC power On and Off, one main application is the light control. The new smart relay calibration technology can reduce the inrush current caused by the load and let the module work perfectly with many kind of light like incandescent, fluorescent and LED light.This in-wall switch module is able to detect Instant power wattage and overload current (7.5A) of connected light or appliances. When detecting overload state, the Module will be disabled and its On/Off button will be lockout of which LED will flash quickly. However, disconnect and re-connect the Module will reset its overload condition to normal status.
    SKU: ZWPHI PAN04
    Ship to
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options
    Availability: In stock

    Features:

    • World first two relay Z-wave 400 series module;
    • Adopt newest Z-wave 400series chip, support multichannel operation and higher data rate (9.6/40/100kbps);
    • Higher RF output power (+2.5dBm output power as compared to -2.5dBm 300 series Z-wave module) to enhance the communication range;
    • Very low electricity consumption, meet Europe year 2012 energy-related products requirement directive 2009/125/EC no. 1275/2008.



    TechInfo:

    • Input voltage: AC 90~240V, DC 24~60V;
    • Load: resistive 2x1.500W @230V, 2x800W @120V;
    • Output type: dry contact relay
    • Power consumption: 0,48W@230V, 0,35W@120V (standby)
    • Frequency: 868.42 MHZ (EU);
    • Range: 40m indoor, 100m outdoor;
    • Operation Temperature: 0~40°C;
    • Humidity: 85%RH max;
    • Weight 30g;
    • Dimension (WxHxD): 47,5x39x15,6 mm.









    Write your own review
    • Only registered users can write reviews
    *
    *
    • Bad
    • Excellent
    *
    *
    *
    *

    Features:

    • World first two relay Z-wave 400 series module;
    • Adopt newest Z-wave 400series chip, support multichannel operation and higher data rate (9.6/40/100kbps);
    • Higher RF output power (+2.5dBm output power as compared to -2.5dBm 300 series Z-wave module) to enhance the communication range;
    • Very low electricity consumption, meet Europe year 2012 energy-related products requirement directive 2009/125/EC no. 1275/2008.



    TechInfo:

    • Input voltage: AC 90~240V, DC 24~60V;
    • Load: resistive 2x1.500W @230V, 2x800W @120V;
    • Output type: dry contact relay
    • Power consumption: 0,48W@230V, 0,35W@120V (standby)
    • Frequency: 868.42 MHZ (EU);
    • Range: 40m indoor, 100m outdoor;
    • Operation Temperature: 0~40°C;
    • Humidity: 85%RH max;
    • Weight 30g;
    • Dimension (WxHxD): 47,5x39x15,6 mm.
