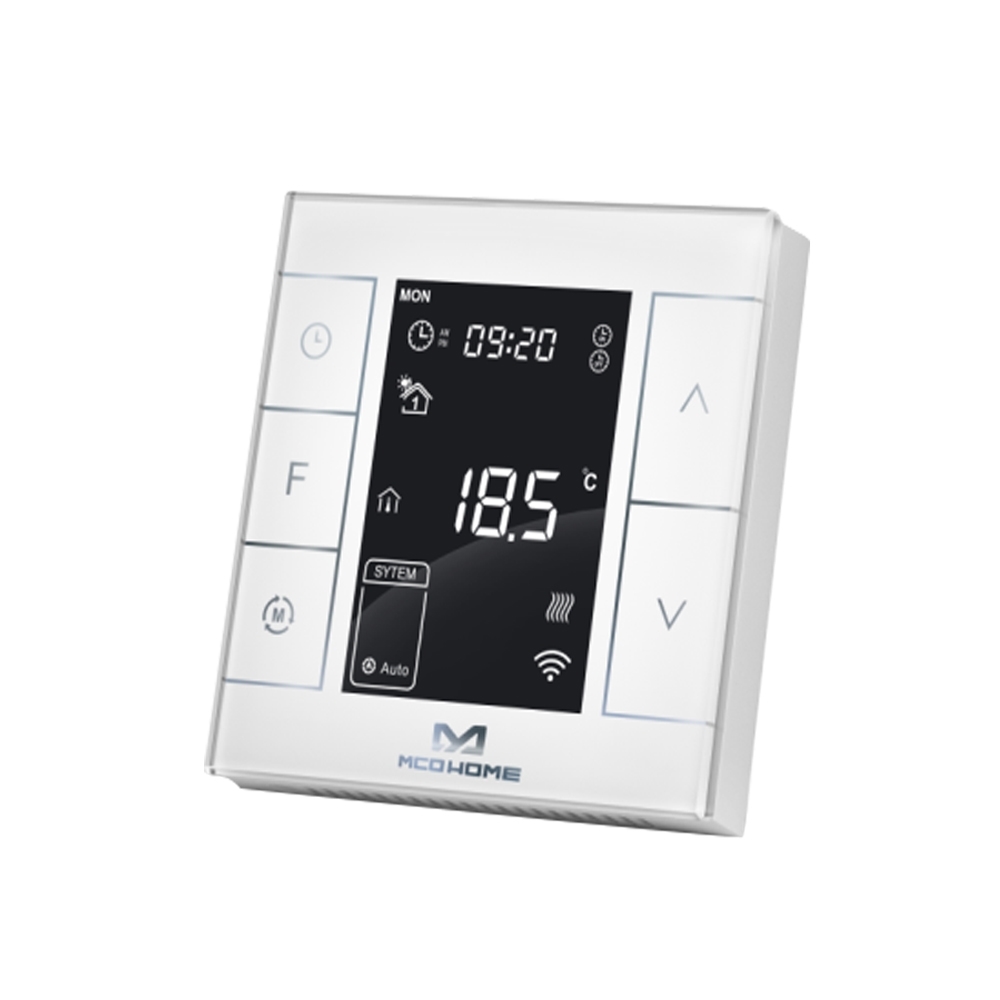

MH7H-EH2 Electring floor Heating Thermostat

MCO Home Electrical Heating Thermostat V2 (Z-Wave Plus)

The MCO Home Electrical Heating Thermostat (V2) is a high-end climate control device developed specifically for the efficient management of electrical underfloor heating systems. Featuring an elegant tempered glass design and fast-responding capacitive touch buttons, it seamlessly integrates into any modern decor, replacing traditional analog thermostats with a connected and sophisticated central hub.

The major innovation of this V2 version is the inclusion of a highly sensitive humidity sensor that works in tandem with the ambient temperature sensor. This allows your Z-Wave controller not only to heat the room but also to monitor air quality, capable of automatically activating ventilation systems or dehumidifiers if humidity levels fall outside comfort parameters. It also features an intuitive interface for local weekly scheduling, the ability to support an external NTC floor sensor (to prevent floor overheating), and a built-in high-power relay (16A), making it the definitive solution for thermal comfort without energy waste.

Technical Specifications:

• Wireless Technology: Z-Wave Plus.

• Application: Electrical heating control (underfloor heating, panels, electrical radiators).

• Maximum Supported Load: 16A (approximately 3600W).

• Integrated Sensors: Ambient temperature sensor and Humidity Sensor.

• External Sensors: Terminals for connecting an external NTC floor limitation probe.

• Interface / Display: LCD display with a tempered glass panel and capacitive touch buttons.

• Power Supply: 230V AC (50/60Hz).

• Installation: Flush-mount in standard European junction boxes (60mm).
