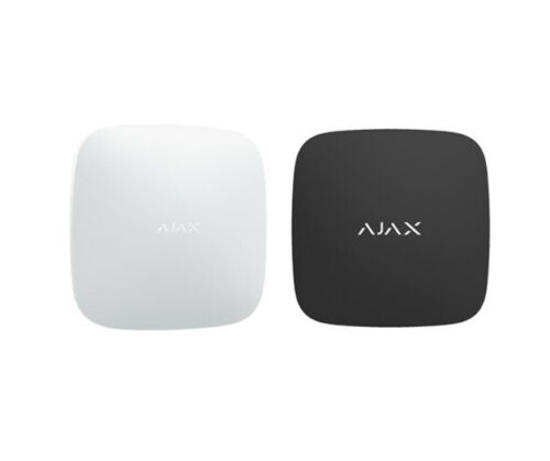

Radio Alarm Center up to 150 Devices; Includes Gsm (Dual SIM with 3G support) and IP Module (WiFi or Ethernet); Notificações via push, SMS and Calls; up to 99 users; Possibility of integration with video surveillance up to 50 streams (RTSP); Possibility of creating up to 25 Groups; 868Mhz Jeweller Frequency; Backup Battery up to 16 Hours; Certificado Level 2; App: IOS, Android and Web. (Available in white HUBPLUS-WHITE).
Protects large areas
The Hub Plus is designed to protect large facilities with a great number of rooms and people. New powerful processor and increased memory capacity have expanded the capabilities of the control panel: up to 150 detectors and 50 cameras can be connected to the Hub and you can add 50 users and create 25 groups for room security management.
Uses all possible alarm transmission methods
The Hub Plus is the absolute leader in field in the number of communication channels: the control panel can be connected to the Internet via Wi-Fi, Ethernet, WCDMA, and GSM. Taken together, these functions ensure ultra-stable connection and instant alarm sending to the owner’s smartphone and the Central Monitoring Station.
Classification: Intelligent central unit of the security system with Wi-Fi and Ethernet modules, and dual SIM
Maximum number of devices connected to the hub: 150
Video surveillance: Up to 50 cameras or DVRs
Maximum number of users: 99
Maximum number of rooms: 50
Maximum number of groups: 25
Mobile application: iOS 9.1 and later, Android 4.1 and later
Communication channels:
- Ethernet
- Wi-Fi 2.4 GHz (802.11 b/g/n)
- 2G (850/900/1800/1900 MHz)
- 3G (WCDMA 900/2100 (B8/B1))
Alarm signal: Delivery time: 0.15 s, Types of notifications: SMS, call, push
Switching between 2G and 3G: Instant
Switching between SIM cards: 4 minutes
Communication with the CMS: Contact ID, SIA
Operating system: OS Malevich
Power supply: Mains supply: 110–240 V, Battery backup: Li-Ion 2 A⋅h, Up to 16 hours of battery life when Ethernet and Wi-Fi connections are disabled
Operating temperature range: −10°C to +40°C
Dimensions: 162.7×162.7×35.9 mm
Warranty: Replacement and repair within 24 months of the date of sale. Batteries are not covered under warranty.
Complete set:
- Ajax Hub Plus intelligent central unit
- SmartBracket mounting panel
- Power cable
- Ethernet cable
- Installation kit
- SIM cards (depending on region)
- User’s guide
