Door/Window Sensor

€35.20 incl tax

Old price: €44.00 incl tax

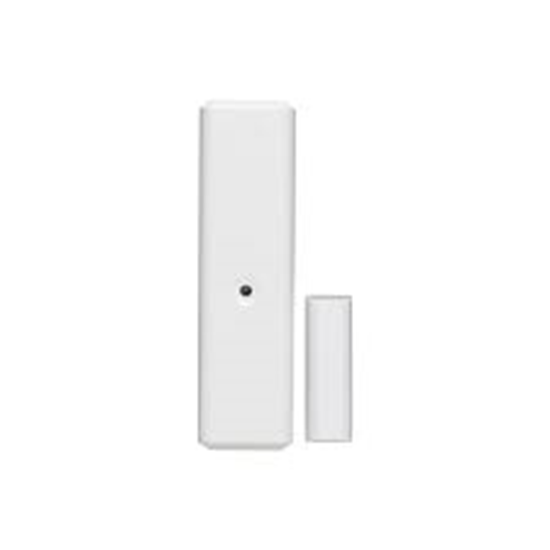

Zipato’s Door/Window Sensor consists of sensor and a magnet. One piece mounts on the door/window frame, and the other mounts on the door/window itself. When the two components separate, sensor reports that door/window is open. When used with Zipato home automation controllers it can be part of any automation scenario created using Zipato Rule Creator. It can be used either to detect intruders or to automatically trigger other Z-Wave devices when activated Like all Z-Wave devices displaying the Z-Wave logo, Zipato Door/Window Sensor can also be used with various Z-Wave networks and controllers, regardless of the manufacturer.

SKU: ZWVIS ZD2102-5

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Availability: 2 in stock

Qty:

Overview
Reviews
Contact Us

Features:

Motion and temperature sensors in one device;
New Z-Wave 500 series chip supports multichannel operation and higher data rates (9.6/40/100kbps);
Can be used with various Z-Wave networks/controllers, regardless of the manufacturers;
Low battery auto report;
Very low power power consumption;
LED indicator;
Over-the-air firmware update;
Easy installation.

TechInfo:

PROTOCOL: Z-Wave Plus;
OPERATING VOLTAGE: 3V CR123A lithium battery;
OPERATING CURRENT: 31.9~34.5mA;
STANDBY CURRENT: 14~16uA;
OPERATING TEMPERATURE: -10°C ~ 40°C;
TEMPERATURE DETECTION RANGE: -20°C ~ 50°C;
TEMPERATURE DETECTION ACCURACY: +/- 2°C (max);
ILLUMINATION RANGE: 0~100%;
MOTION DETECTION RANGE: 2-10m;
MOTION DETECTION ANGLE: 120°;
RANGE: Minimum 30 meters indoor / 70 meters outdoor;
DIMENSIONS: 50 x 60 x 60 mm;
WEIGHT: 60g;
REGULATION: EMC 2004/108/EC, R&TTE 1995/5/EC, LVD 2006/95/EC, FCC Part 15;
