    Shelly EM-120A

    €21.94 incl tax

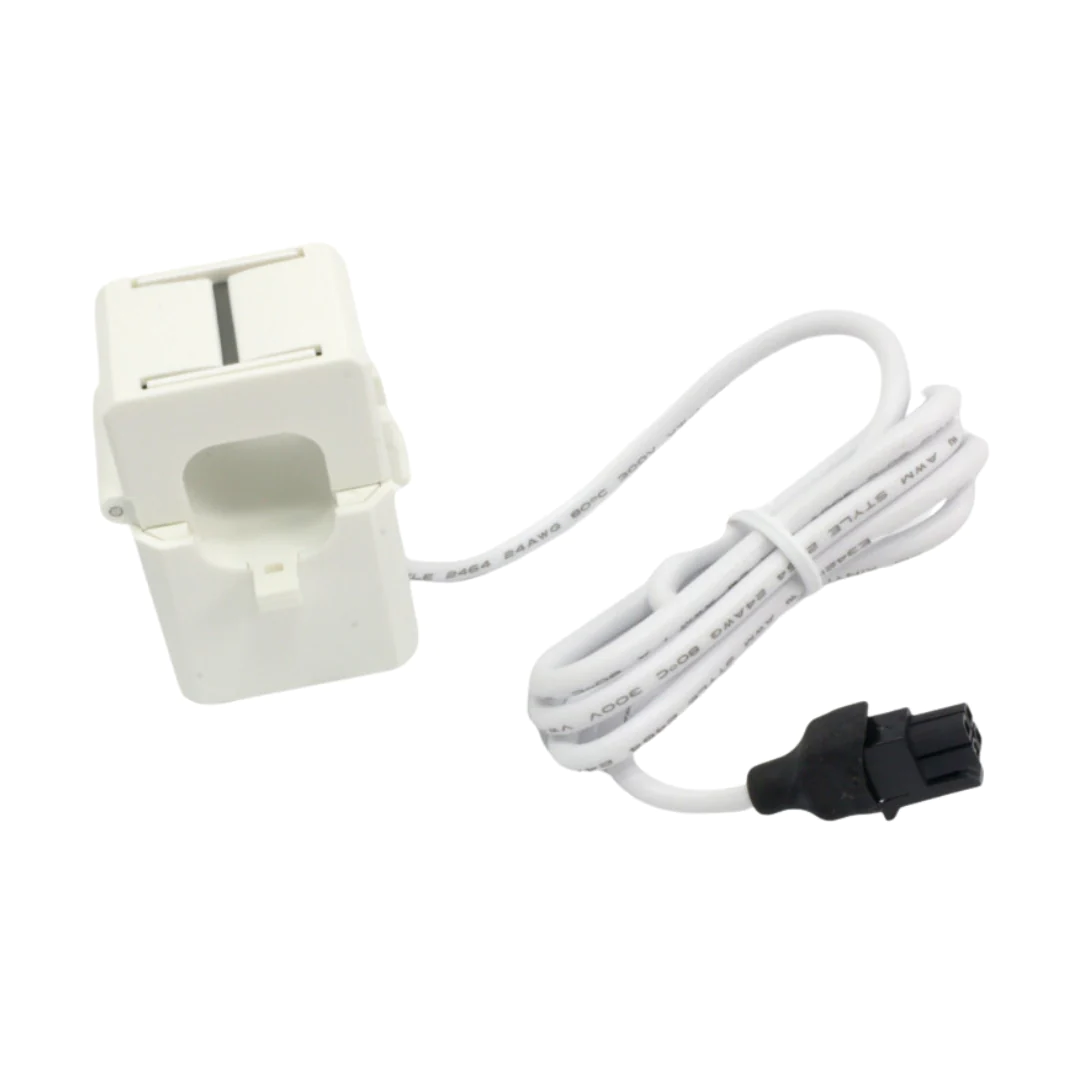

    Current (or intensity) transformer with a split ferrite core, designed for measuring high AC currents. It is designed for specific Shelly modules for power consumption monitoring. It allows for easy installation without interrupting the electrical circuit you want to monitor.
    SKU: Shelly EM core 120A
    Ship to
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options
    Availability: Out of stock

    Specifications:

    • Nominal Primary Current: 120A
    • Inner Diameter: 17mm
    • Saturation Current: ≥85A
    • Nominal Secondary Current: 16.67mA
    • Accuracy: 1%
    • Maximum Voltage: 3000VAC 1mA 60s
    • Load Resistance: 20Ω
    • Core: Ferrite core, openable.
    Products specifications
    FunctionAccessory
