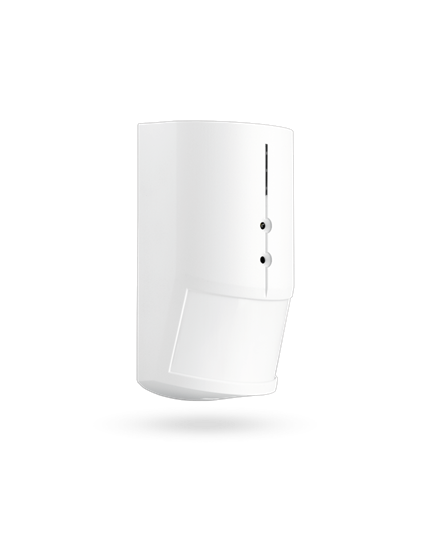

Wireless motion detector with built-in camera

Features: The detector’s camera is equipped with a flash to take photos in the dark. The camera is capable of taking monochromatic pictures with a resolution of 160x128 pixels. A sequence of 4 photos is taken when movement is detected. It is stored in the detector’s internal memory and it is also transmitted wirelessly to the control panel to be sent to an alarm receiving center and/or to the owner’s mobile phone display. The battery-powered detector communicates via the OASIS radio protocol.

TechInfo:

• Voltage: 2x Lithium battery type CR123 (3.0V);
• Typical battery lifetime: approx. 3 years (max. 80 photo sequences) ;
• Communication band: 868 MHz, Oasis protocol;
• Communication range: max. 300m (open area) ;
• Recommended installation height: 2.0 to 2.5 m above floor level;
• PIR detection angle/detection range: 120° / 12 m (with basic lens) ;
• Resolution of the camera: 160 x 128 pixels, B&W;
• Internal memory photo format: bit map (BMP) ;
• Format of the photos transmitted to server: JPG;
• Horizontal camera capture angle: 50°;
• Range of the flash: max. 3 meters;
• Typical photo transmission time to the control panel: 12 sec;
• Typical photo transfer time from the system to server: 8s/GPRS (JA-80Y), 2s/LAN (JA-80V);
• EN 50131-1,CLC/TS 50131-2-2, EN 50131-5-3 classification: grade 2;
• Operational environment according to EN 50131-1: II. indoor general;
• Operational temperature range: -10 to +40 °C;
• Dimensions: 110 x 60 x 55 mm;
• Complies with ETSI EN 300220, EN 55022, EN 50130-4;
