Tech specs

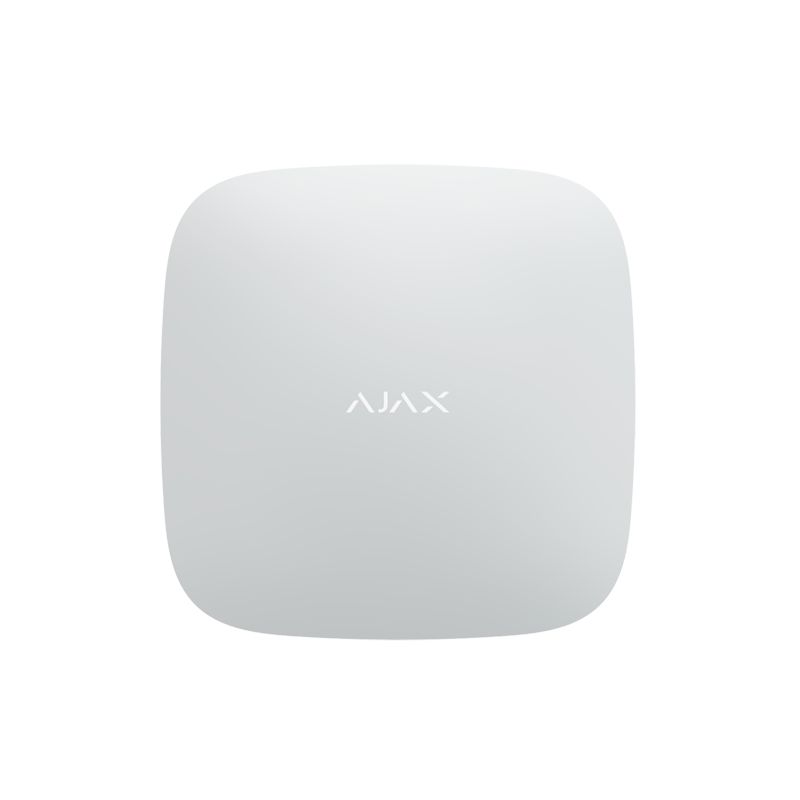

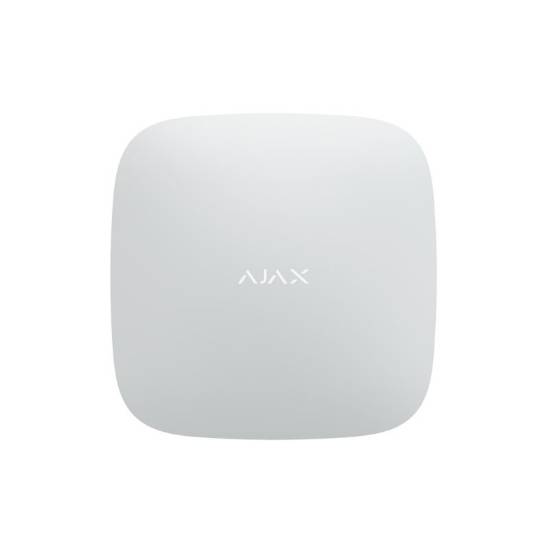

Classification: Radio channel range extender
Device type: Wireless
Installation method: Indoors
Compatibility: Hub 2 and Hub 2 Plus with OS Malevich version 2.12 and higher
Alarm signal delivery time: 0.3 seconds
Maximum connected devices (in a system with one range extender):
Hub 2 — up to 99
Hub 2 Plus — up to 199
Number of range extenders connected to the hub: 5
Operating system: OS Malevich
Power supply:
110−240 VAC or 12 V from 12V PSU for Hub 2/Hub 2 Plus/ReX 2
Built-in backup battery Li-Ion 2 Ah
Up to 38 hours of backup battery life
Jeweller radio protocol:
Communication range with the hub — up to 1,700 m in open space
Communication range with detectors — up to 1,700 m in open space, depending on the detector model
Two-sided communication between devices
Operating frequencies:
866.0 – 866.5 MHz
868.0 – 868.6 MHz
868.7 – 869.2 MHz
905.0 – 926.5 MHz
915.85 – 926.5 MHz
921.0 – 922.0 MHz
(depends on the region of sale)
Auto-regulated radio signal power: ≤ 25 mW
Blocking encryption based on the AES algorithm
Detector ping interval — 12–300 seconds
Frequency hopping
Operating temperature range: From −10°C to +40°C
Operating humidity: Up to 75%
Anti-sabotage:
Fraud protection
Jamming notification
Tamper-resistant
Dimensions: 163 × 163 × 36 mm
Weight: 330 g
Warranty: 24 months from the date of sale
Complete set
ReX 2
SmartBracket mounting panel
Power cable
Installation kit
Quick start guide
Service life: 10 years
